how-to-use-fapi-feature_1 FAPI Profile

​
Overview

This document explains how to use Financial-grade API (FAPI) feature in Authlete.
FAPI feature is available since Authlete 2.0.
If you are using Authlete 2.2+, refer to Financial-grade API (FAPI) Basics.

​
Introduction

FAPI defines two types of security profiles. One is read-only API profile (specified in FAPI part1) and the other one is read-and-write API profile (specified in FAPI part2). Requirements for authorization servers in both profiles are different, thus the behavior of authorization servers varies depending on which security profile it is based on. To enable FAPI feature in Authlete, you need to configure your service and client so that they satisfy the requirements in either of the profiles above. Additionally, request parameters that your client sends to your service (authorization server) also need to be configured appropriately because Authlete determines whether FAPI feature is enabled or not at runtime. This means FAPI feature is not enabled in Authlete when request parameters are not configured properly even if the configurations of your service and client meet FAPI requirements. The following steps briefly explain how Authlete determines whether to enable FAPI or not at runtime:
  1. Extract scopes that are contained in the request or associated with the request
  2. Check the scope attributes (see Appendix 1) associated with each scope as follows:
ConditionAuthlete behavior
When the scope has a fapi read-only attribute (“key = fapi” and “value = r”)Authlete behaves based on read-only API profile.
When the scope has a fapi read-and-write attribute (“key = fapi” and “value = rw”)Authlete behaves based on read-and-write API profile.
OtherwiseAuthlete behaves based on regular OAuth2.0/OIDC flows.
In the following sections, we will see more details of how to configure a service, a client and request parameters for both profiles.

​
Service configurations

This section explains how to configure a service to support FAPI profiles.

​
Configurations for read-only API profile

Configure a service as below.
PropertyConfiguration

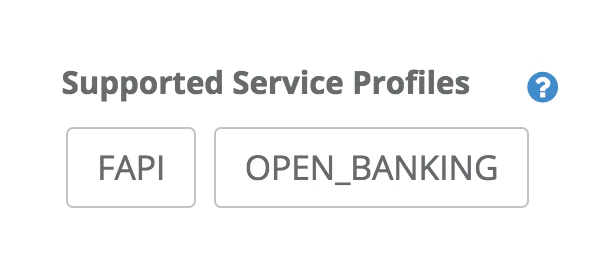

Supported Service ProfilesChoose FAPI.
Supported Client Authentication MethodsChoose at least one of: TLS_CLIENT_AUTH, SELF_SIGNED_TLS_CLIENT_AUTH, CLIENT_SECRET_JWT, PRIVATE_KEY_JWT. Note: If all the FAPI clients communicating with this service are public clients, this configuration is not mandatory.
Supported ScopesCreate at least a scope that has an “read-only” attribute.

​
Configurations for read-and-write API profile

To support read-and-write API profile, you need to configure a service according to the configurations for read-only API profile and the following additional configurations. (Some configurations for read-only API profile are overridden.)
PropertyConfiguration
Supported Authentication Context Class ReferencesSet an appropriate value.(e.g. urn:mace:incommon:iap:silver)
Supported Response TypesChoose at least one of: CODE_ID_TOKEN, CODE_ID_TOKEN_TOKEN. Note: If all the FAPI clients communicating with this service use JARM (See Appendix 2), this configuration is not mandatory.
Supported Client Authentication MethodsChoose at least one of: TLS_CLIENT_AUTH, SELF_SIGNED_TLS_CLIENT_AUTH, PRIVATE_KEY_JWT. Note: If all the FAPI clients communicating with this service are public clients, this configuration is not mandatory.
TLS Client Certificate Bound Access TokensChoose Supported.
Supported ScopesCreate at least a scope that has an “read-and-write” attribute.

​
Client configurations

This section explains how to configure a client to support FAPI profiles.

​
Configurations for read-only API profile

Configure a client as below.
PropertyConfiguration
Client Authentication MethodIf this client is a confidential client, choose one of: TLS_CLIENT_AUTH, SELF_SIGNED_TLS_CLIENT_AUTH, CLIENT_SECRET_JWT, PRIVATE_KEY_JWT.
Redirect UrisSet a URI starting with https.
JWK Set ContentNote: not mandatory if “JWK Set URI” is used. If this client uses PRIVATE_KEY_JWT, the value must contain a public key for verifying assertion signature and the key must satisfy the requirements in Appendix 3.
JWK Set URINote: not mandatory if “JWK Set Content” is used. If this client uses PRIVATE_KEY_JWT, the JWK set must contain a public key for verifying assertion signature and the key must satisfy the requirements in Appendix 3.

​
Configurations for read-and-write API profile

To support read-and-write API profile, you need to configure a client according to the configurations for read-only API profile and the following additional configurations. (Some configurations for read-only API profile are overridden.)
PropertyConfiguration
Response TypeChoose at least one of: CODE_ID_TOKEN, CODE_ID_TOKEN_TOKEN. Note: If this client uses JARM (See Appendix 2), this configuration is not mandatory.
Supported Client Authentication MethodsIf this client is a confidential client, choose one of: TLS_CLIENT_AUTH, SELF_SIGNED_TLS_CLIENT_AUTH, PRIVATE_KEY_JWT.
TLS Client Certificate Bound Access TokensChoose Enabled.
Authorization Response Signature AlgorithmIf this client uses JARM, choose one of: PS256, ES256.
Assertion Signature AlgorithmIf this client uses PRIVATE_KEY_JWT, choose one of: PS256, ES256.
Request Object Signature AlgorithmChoose one of: PS256, ES256.
ID Token Signature AlgorithmIf this client asks for ID tokens, choose one of: PS256, ES256.
User Info Signature AlgorithmIf this client uses user info endpoint, choose one of: PS256, ES256.

​
Request

This section explains how to configure request parameters (for authorization endpoint and token endpoint) to support FAPI profiles.

​
Authorization request

​
Authorization request for read-only API profile

Requirements for request parameters
ParameterRequirement
redirect_uriSet a URI that satisfies: must exactly match one of the pre-registered redirect URIs; must start with https.
stateRequired if ‘openid’ scope is not contained in the ‘scope’ request parameters.
code_challengeSet a value that complies with PKCE (RFC 7636).
code_challenge_methodMust be ‘S256’.
scopeMust include at least a scope that has an “read-only” attribute.
Example
#
# An example request from a public client.
#
# Note:
#   * scope: 'account' scope has a "read-only" attribute.
#   * state: Optional but recommended (OAuth 2.0).
#   * nonce: Required if the 'response_type' request parameter contains
#      'id_token' (OpenID Connect).
#
GET /api/authorization?

response_type=code+id_token&
client_id=285946231596&
redirect_uri=https://my-client.com/callback&
scope=openid+accounts&
code_challenge=E9Melhoa2OwvFrEMTJguCHaoeK1t8URWbuGJSstw-cM&
code_challenge_method=S256&
state=mystate&
nonce=mynonce

​
Authorization request for read-and-write API profile

Requirements for request parameters To support read-and-write API profile, you need to configure request parameters according to the requirements for read-only API profile and the following additional requirements. (Some requirements for read-only API profile are overridden.)
ParameterRequirements
requestNote: If ‘request_uri’ parameter is used, this requirement is not mandatory. Set a request object that satisfy the requirements in Appendix 4.
request_uriNote: If ‘request’ parameter is used, this requirement is not mandatory. Set a URL pointing a request object that satisfy the requirements in Appendix 4.
response_typeSet ‘code id_token’ or ‘code id_token token’. Note: If this client always uses JARM, this requirement is not mandatory.
code_challengeSet a value that complies with PKCE (RFC 7636) if this client is a public client.
code_challenge_methodMust be ‘S256’ if this client is a public client.
scopeMust include at least a scope that has an “read-and-write” attribute.
claimsMust include the ‘acr’ claim as an essential claim (“essential”:true). See example below.
Example claims structure:
{
  "id_token": {
    "acr": {
      "essential": true,
      "values": ["urn:mace:incommon:iap:silver"]
    }
  }
}
Example
#
# An example request from a confidential client.
#
# Note:
#   * scope: 'account' scope has a "read-and-write" attribute.
#   * state: Optional but recommended (OAuth 2.0).
#   * nonce: Required if the 'response_type' request parameter contains
#      'id_token' (OpenID Connect).
#
GET /api/authorization?

response_type=code+id_token&
client_id=291985138172&
scope=openid+payments&
redirect_uri=https://my-client.com/callback&
state=mystate&
nonce=mynonce&
claims={"id_token":{"acr":{"essential":true,"values":["urn:mace:incommon:iap:silver"]}}}&
request=eyJh...[省略]...nPQ

​
Token request

​
Token request for read-only API profile

Requirements for request parameters
ParameterRequirement
client_assertionIf this client uses PRIVATE_KEY_JWT as its client authentication method, the value of this property must contain a public key for verifying assertion signature and the key must satisfy the requirements in Appendix 3.
Example
#
# An example request from a public client.
#
POST /api/token

client_id=285946231596&
grant_type=authorization_code&
code=_vaXlQ_ItUX4hiWzXgOT-Jp9-oVPKGQ6Q6QZu_P2GXw&
redirect_uri=https://my-client.com/callback&
code_verifier=dBjftJeZ4CVP-mB92K27uhbUJU1p1r_wW1gFWFOEjXk

​
Token request for read-and-write API profile

Requirements for request parameters To support read-and-write API profile, you need to configure request parameters according to the requirements for read-only API profile and the following additional requirements. (Some requirements for read-only API profile are overridden.)
ParameterRequirement
client_assertionIf this client uses PRIVATE_KEY_JWT as its client authentication method, the value of this property must be signed with the algorithm specified as ‘Assertion Signature Algorithm’.
Client certificate The client needs to present a client certificate to the token endpoint as ‘TLS Client Certificate Bound Access Tokens’ is enabled for the client. Example
#
# An example request from a confidential client.
#
# Note:
#   * The client uses PRIVATE_KEY_JWT as its client authentication method.
#   * The client needs to present a client certificate to the token endpoint,
#      as 'TLS Client Certificate Bound Access Tokens' is enabled for the client.
#
POST /api/token

client_id=291985138172&
grant_type=authorization_code&
code=YG-gD9v-vmnuKaHkRHcvWq1UxlxT_9vgj28ffxIAX40&
redirect_uri=https://my-client.com/callback&
client_assertion=eyJh...[omitted]...OWg&
client_assertion_type=urn:ietf:params:oauth:client-assertion-type:jwt-bearer

​
Appendix

​
1. Scope attributes

See this article.

​
2. JARM

See this article.

​
3. Requirements for key size

FAPI Part1 says
Financial Services – Financial API - Part 1, 5.2.2. Authorization Server The authorization server,
  …
  5. shall require a key of size 2048 bits or larger if RSA
    algorithms are used for the client authentication;
  6. shall require a key of size 160 bits or larger if elliptic
    curve algorithms are used for the client authentication;
Then, a public key for signing a client assertion (JWS) and a private key for verifying the signature must satisfy the following requirements.
Client assertion algorithm typeRequirements for key size
RSA algorithmThe key size must be equal to or larger than 2048 bits.
EC algorithmThe key size must be equal to or larger than 160 bits.
OtherwiseNo requirements.

​
4. Requirements for request objects

FAPI Part2 says
Financial Services – Financial API - Part 2, 5.2.2. Authorization Server The authorization server,
  …
  1. shall require the request or request_uri parameter to be passed as a JWS signed JWT as in clause 6 of [OIDC];
  …
  10. shall require that all parameters are present inside the signed request object passed in the request or request_uri parameter;
  …
  13. shall require the request object to contain an exp claim;
  …
  15. shall require the aud claim in the request object to be, or to be an array containing, the OP’s Issuer Identifier URL;
Additionally, the following requirements for JWS signature must be satisfied.
Financial Services – Financial API - Part 2, 8.6 JWS algorithm considerations Both clients and authorization servers:
    1. shall use PS256 or ES256 algorithms;
    2. should not use algorithms that use RSASSA-PKCS1-v1_5 (e.g. RS256);
    3. shall not use none;
In sum, in order to support read-and-write API profile, request objects
  • Must be signed with the algorithm specified as ‘Request Object Signature Algorithm’.
  • Must include all the request parameters.
  • Must include the ‘exp’ claim
  • Must include the ‘aud’ claim and the value must be the value of ‘Token Issuer Identifier’.
The following example shows the payload of a request object that satisfies the requirements.
{
  "response_type": "code id_token",
  "exp": 1554973000,
  "aud": "https://my-authz-server.com/",
  "client_id": "291985138172",
  "scope": "openid payments",
  "redirect_uri": "https://my-client.com/callback",
  "state": "mystate",
  "nonce": "mynonce",
  "claims": {
    "id_token": {
      "acr": {
        "values": ["urn:mace:incommon:iap:silver"],
        "essential": true
      }
    }
  }
}
