Introduction

This document explains OpenID Federation 1.0. | Revision History | | Date | Changes | | 2023-01-01 | The initial version was published. | | 2024-08-03 | Since the specification name was changed from OpenID Connect Federation 1.0 to OpenID Federation 1.0, the text and diagrams have been updated accordingly. The “Introduction” section was added to include this “Revision History”. |

​

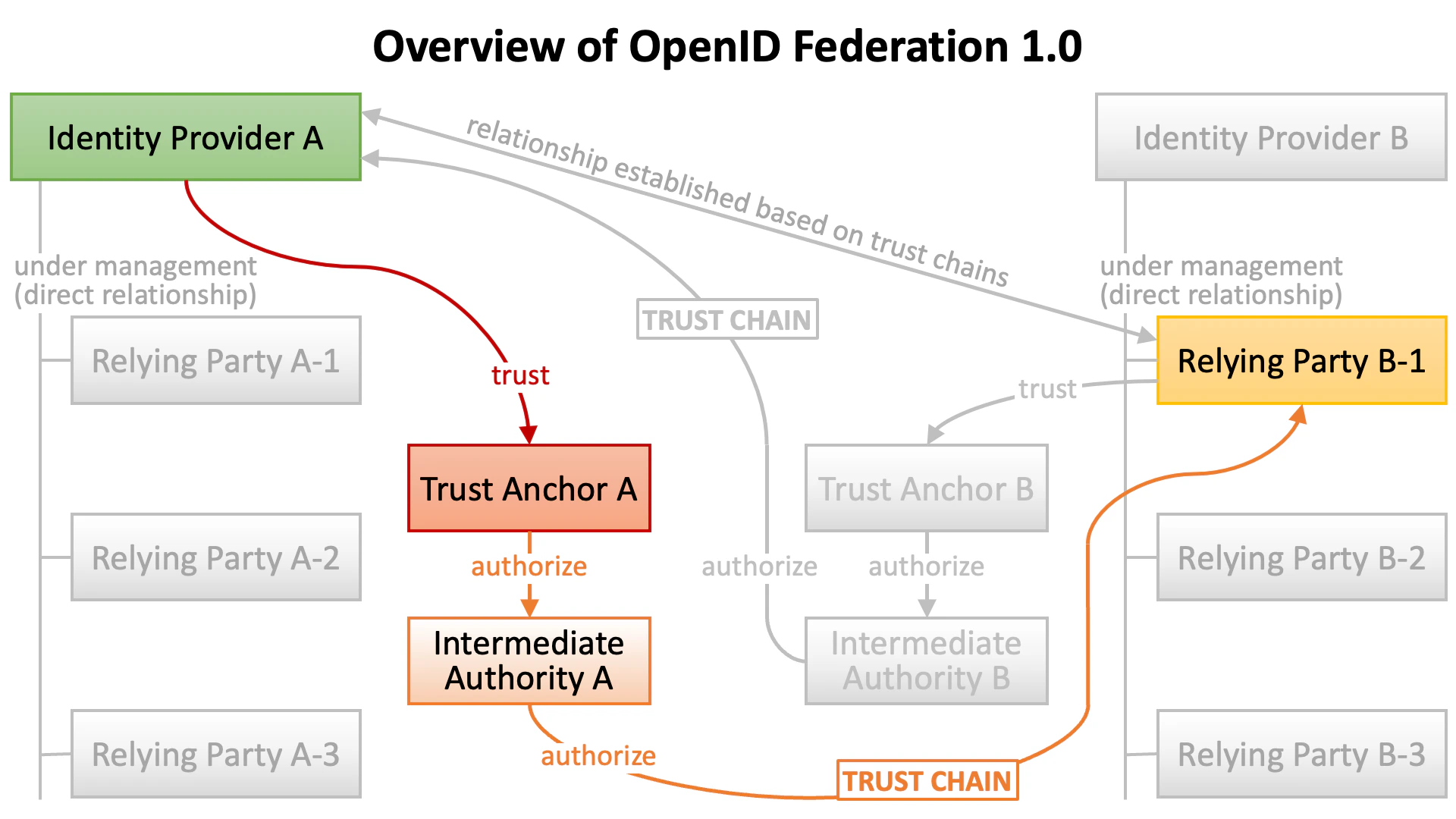

Overview

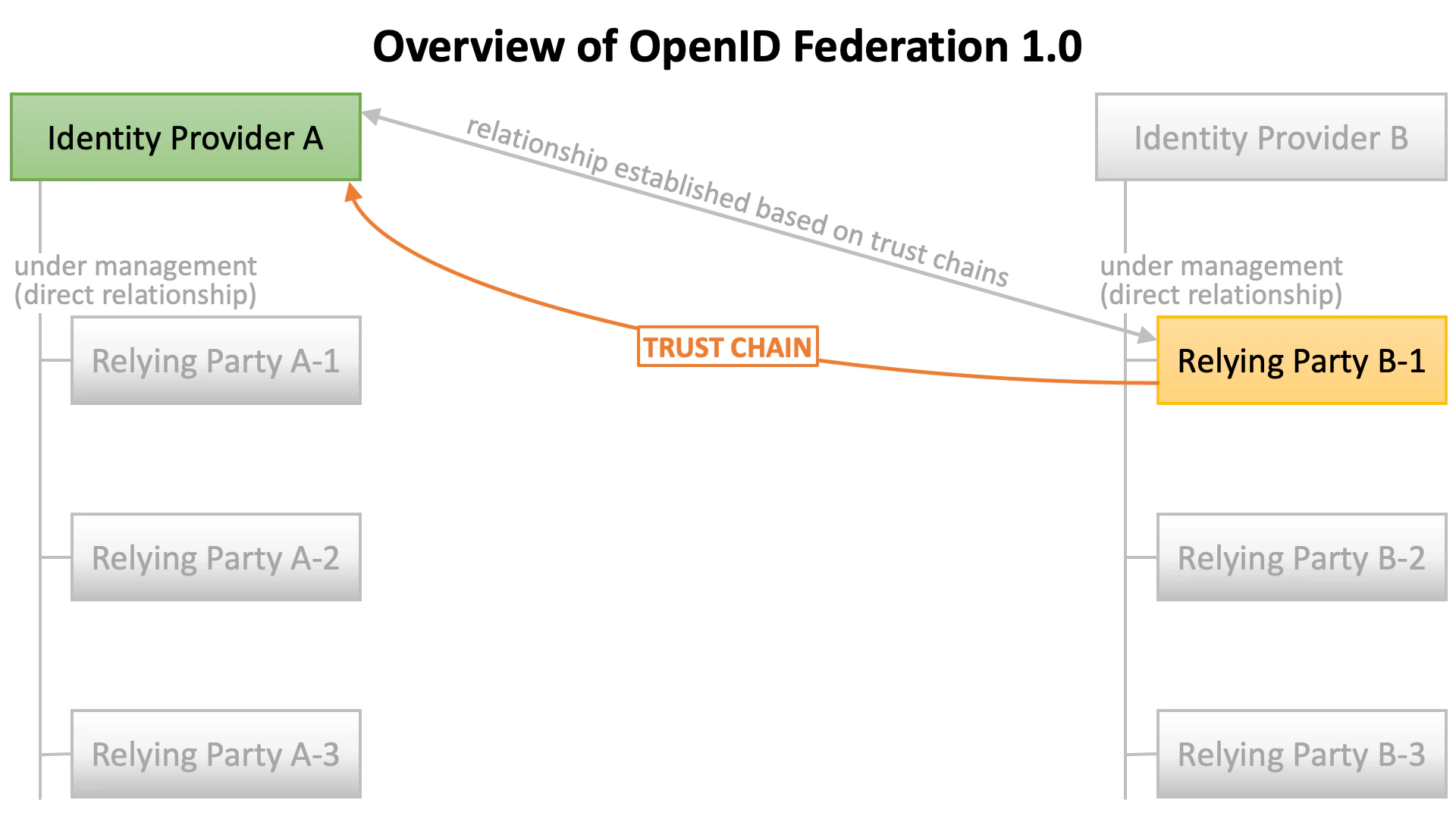

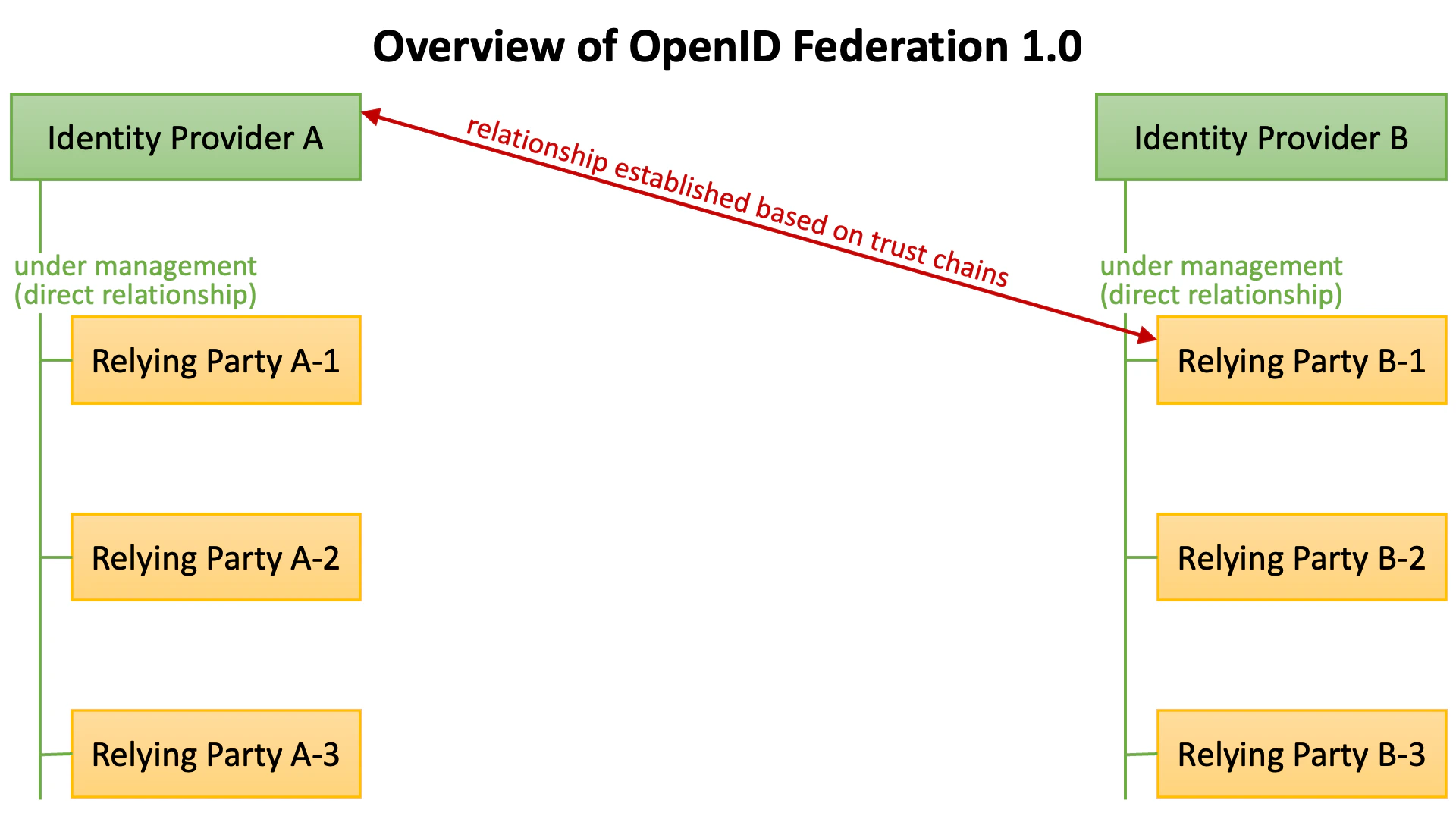

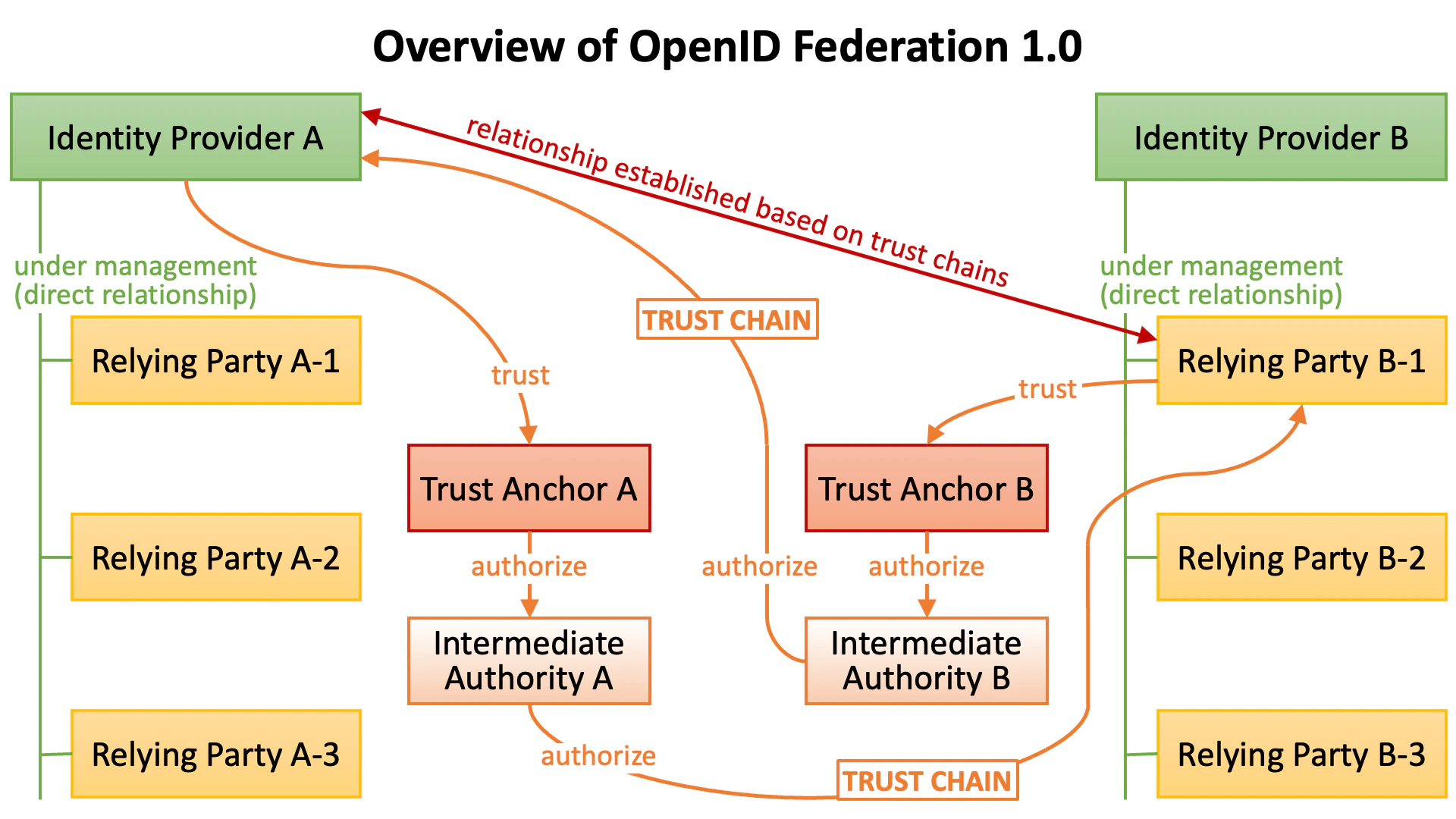

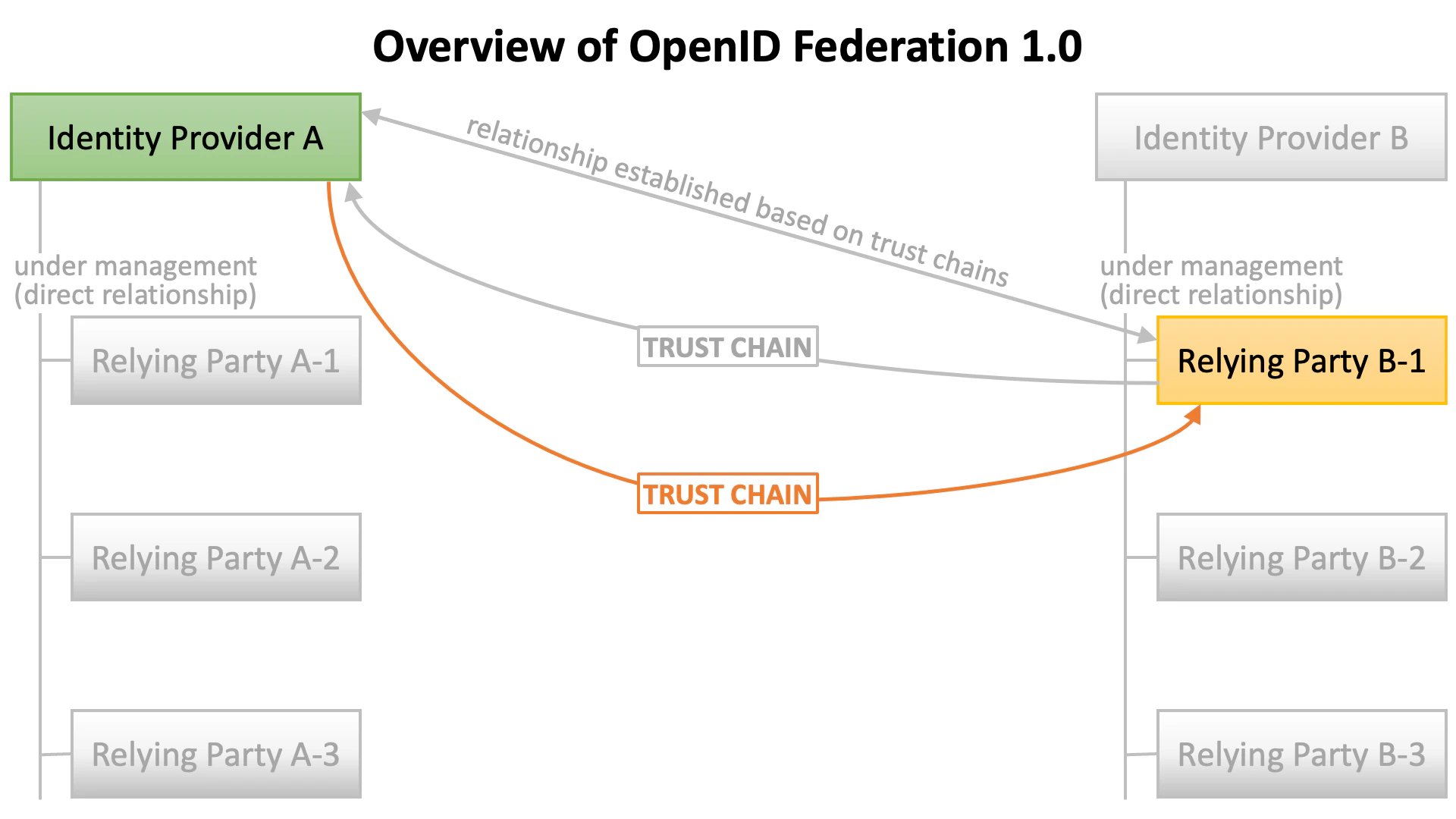

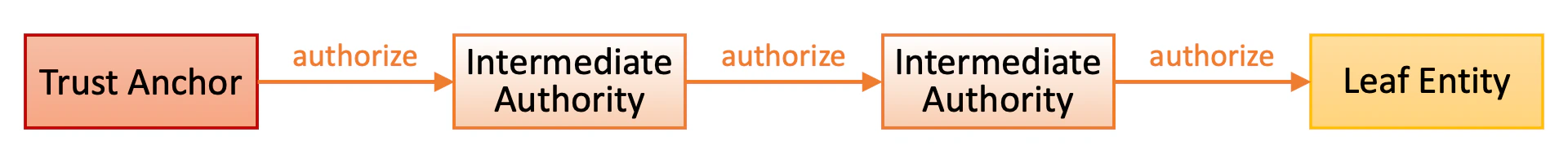

OpenID Federation 1.0 defines a mechanism where an identity provider / authorization server and a relying party (client) that have no direct relationship trust each other based on trust chains and the identity provider accepts OAuth/OIDC requests from the relying party without needing prior registration of the relying party. Trust chains are uni-directional. Therefore, two trust chains are built when an identity provider and a relying party trust each other. One is a trust chain for the relying party to trust the identity provider. The other is a trust chain for the identity provider to trust the relying party. A trust chain is built by third-party authorities. An authority that works as the origin of a trust chain is called “trust anchor” and other authorities in between the trust anchor and the target leaf entity (an identity provider or a relying party) are called intermediate authority. Trust anchors and intermediate authorities are conceptually equivalent to root certificate authority (Root CA) and intermediate certificate authority (Intermediate CA) in the Public Key Infrastructure (PKI). A relying party trusts one or more trust anchors. If any of the trust anchors has a path to the target identity provider, the relying party can trust the identity provider. Likewise, an identity provider trusts one or more trust anchors. If any of the trust anchors has a path to the target relying party, the identity provider can trust the relying party. The diagram below illustrates an overview of OpenID Federation 1.0 that has been explained in this section.

​
Trust Chain

Technically speaking, a trust chain is a sequence of JWTs (RFC 7519 JSON Web Token) that are issued by a leaf entity, zero or more intermediate authorities, and a trust anchor.

​

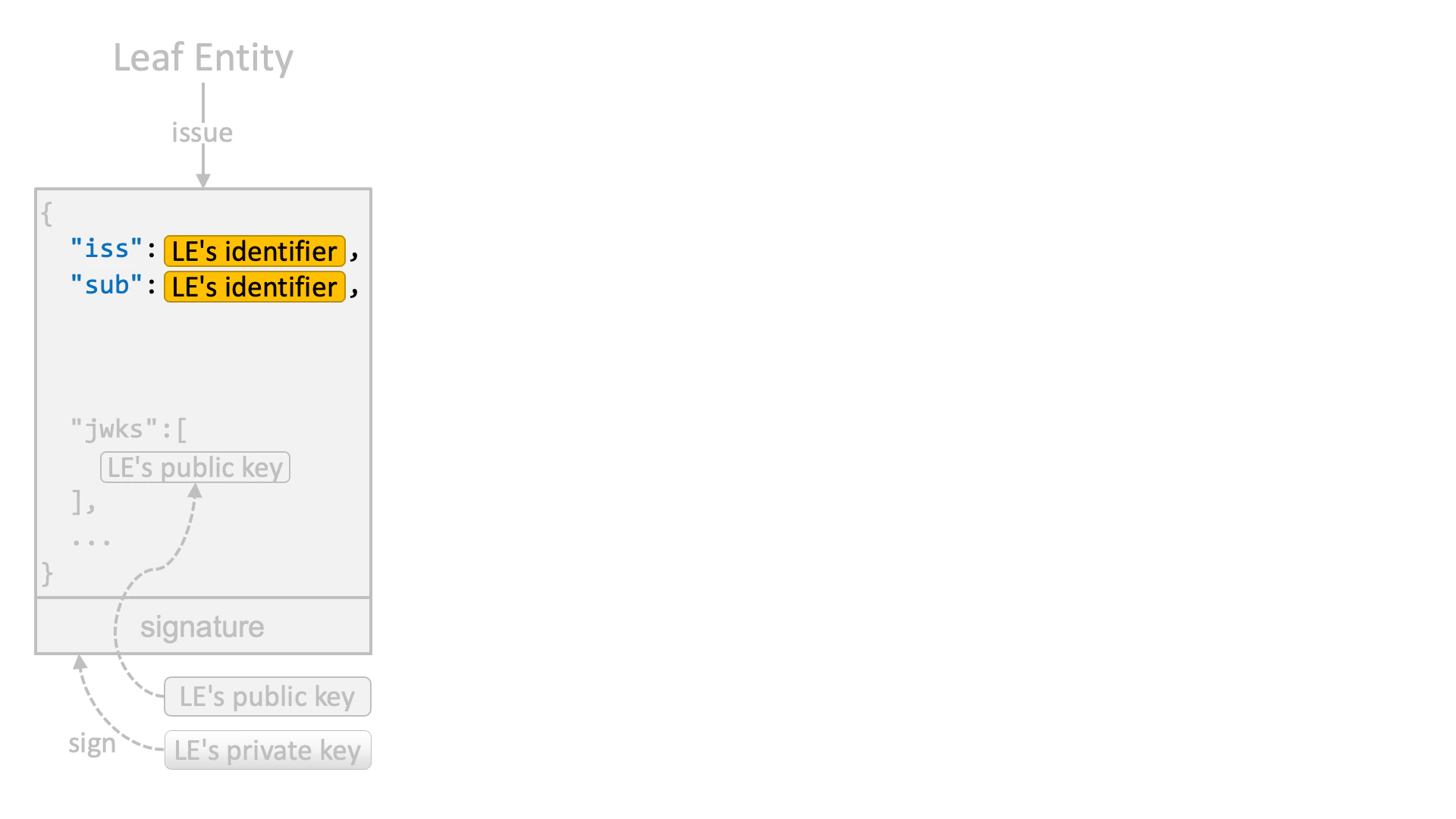

JWT Issued by Leaf Entity

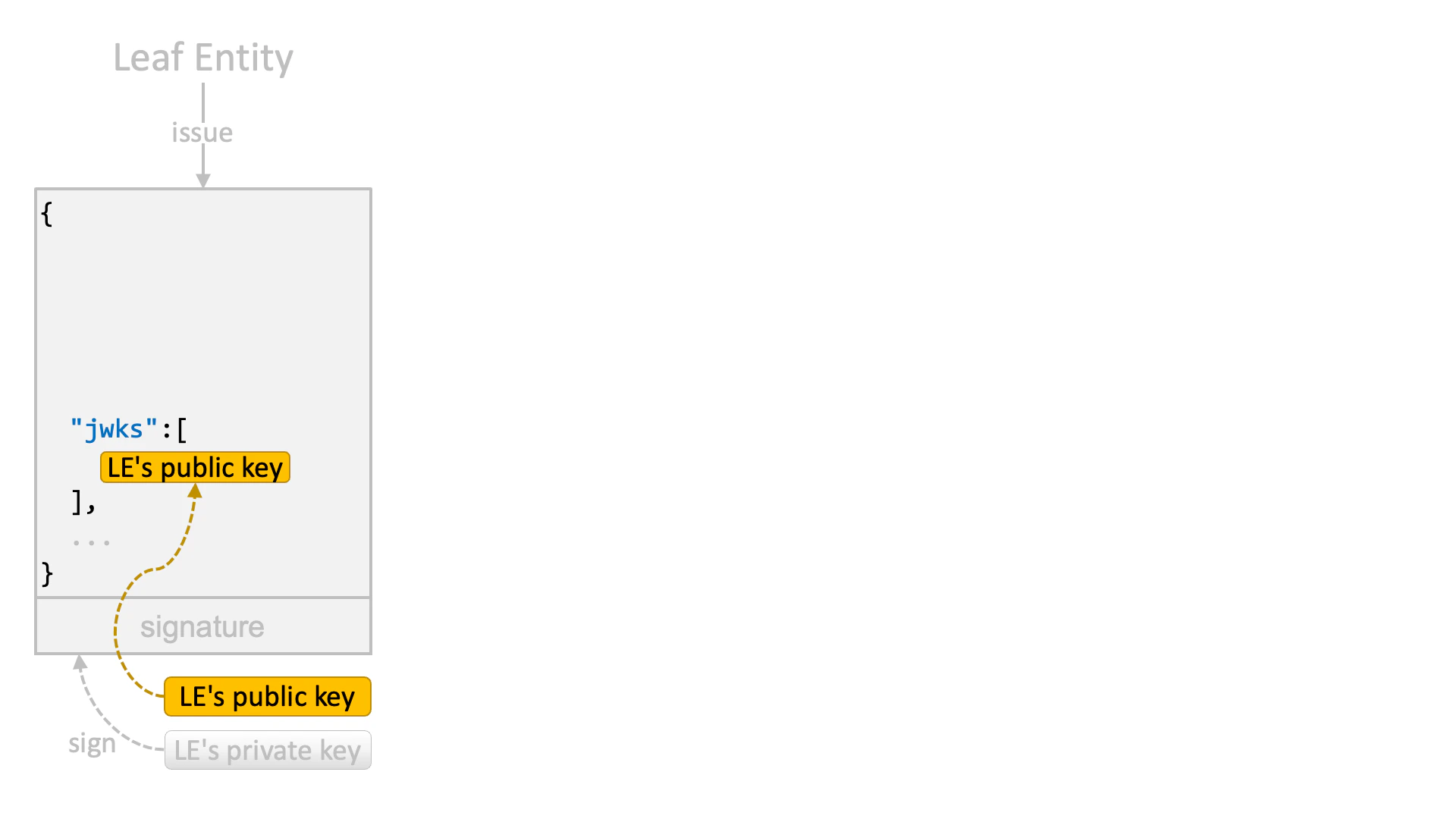

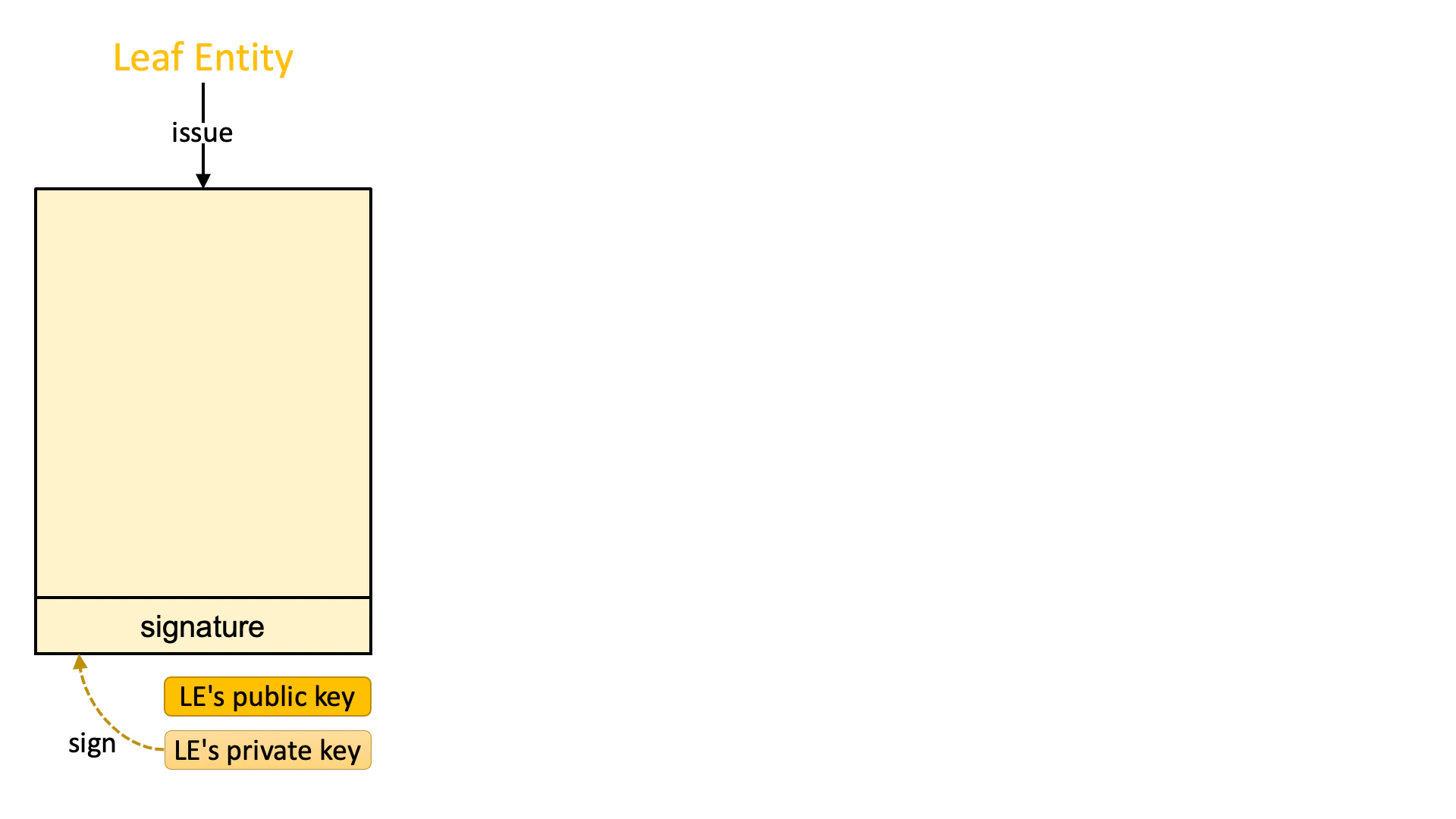

A leaf entity issues a JWT that is signed by the leaf entity’s private key. The OpenID Federation specification requires that the payload part of the JWT issued by a leaf entity contain the public key corresponding to the private key which is used to sign the JWT. The jwks claim is used to include the public key. As a result, the JWT becomes a self-signed JWT. Therefore, both the iss claim (Issuer; RFC 7519 Section 4.1.1) and the sub claim (Subject; RFC 7519 Section 4.1.2) in the payload part of the JWT hold the leaf entity’s identifier.

​

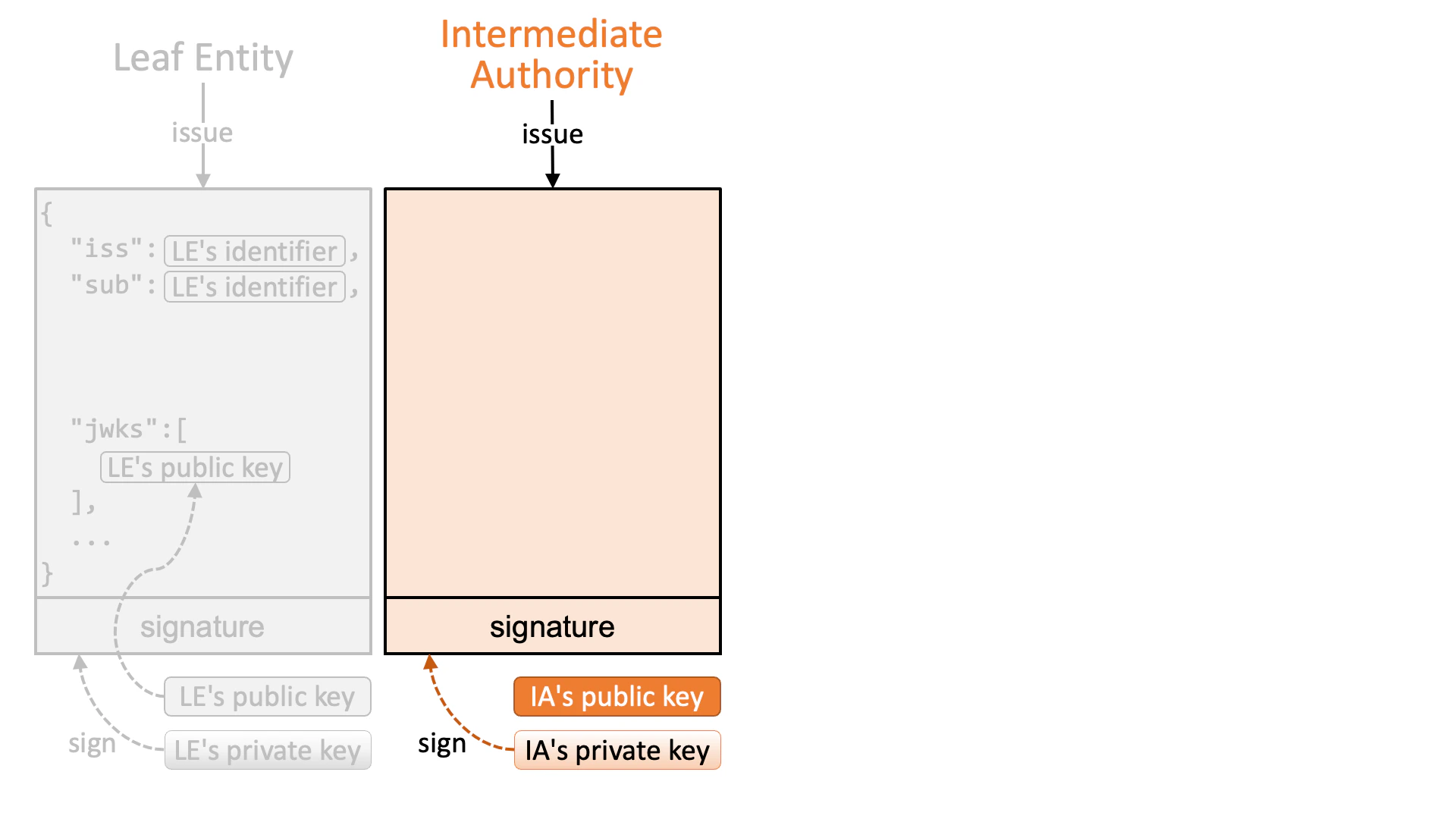

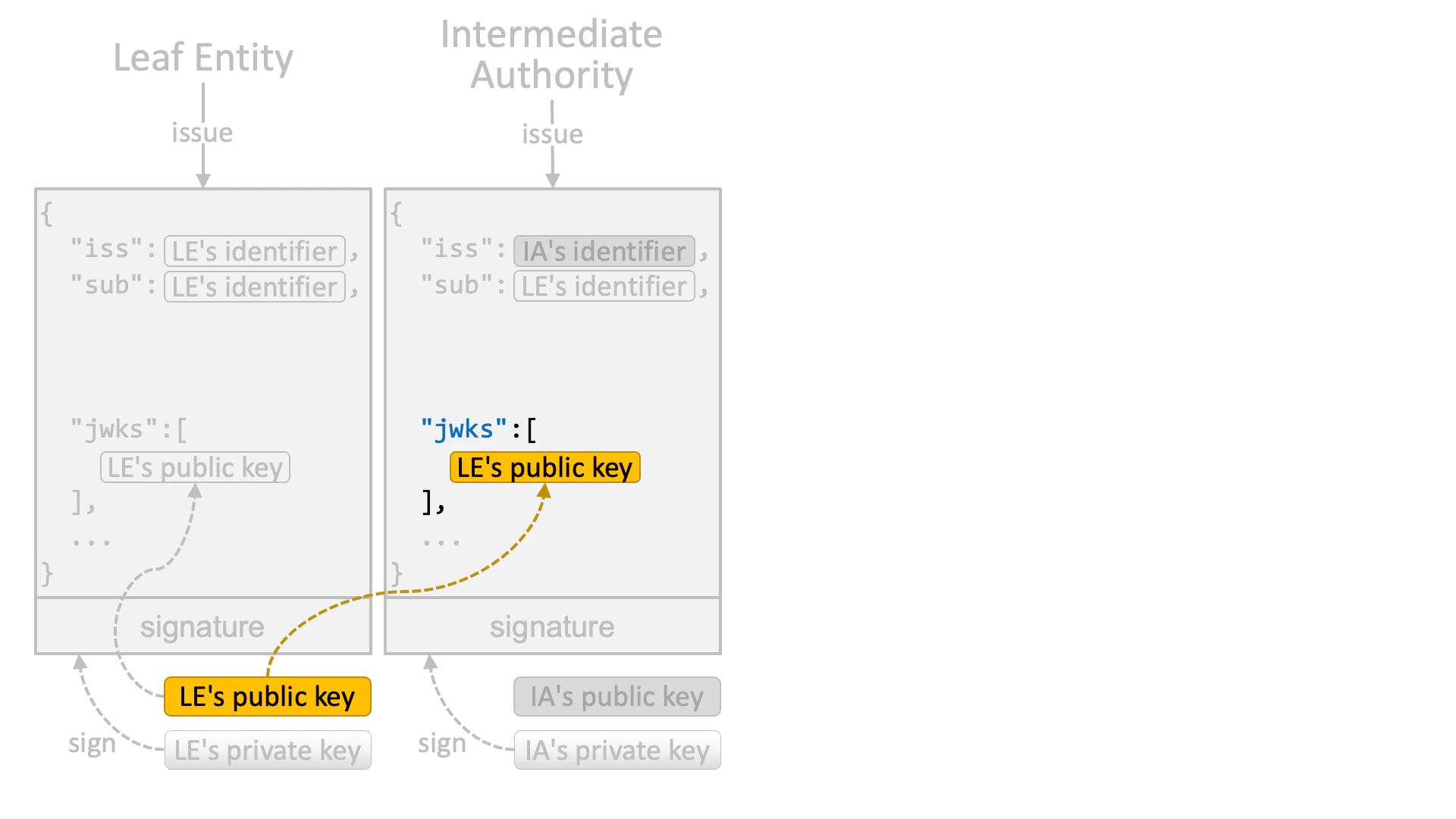

JWT Issued by Intermediate Authority

An intermediate authority (or a trust anchor if no intermediate authority exists in a trust chain) that authorizes the leaf entity issues a JWT that is signed by the intermediate authority’s private key. The purpose of the JWT is to indicate that the intermediate authority authorizes the leaf entity. For the purpose, the sub claim holds the leaf entity’s identifier while the iss claim holds the intermediate authority’s identifier. In addition, the jwks claim holds the public key of the leaf entity.

​

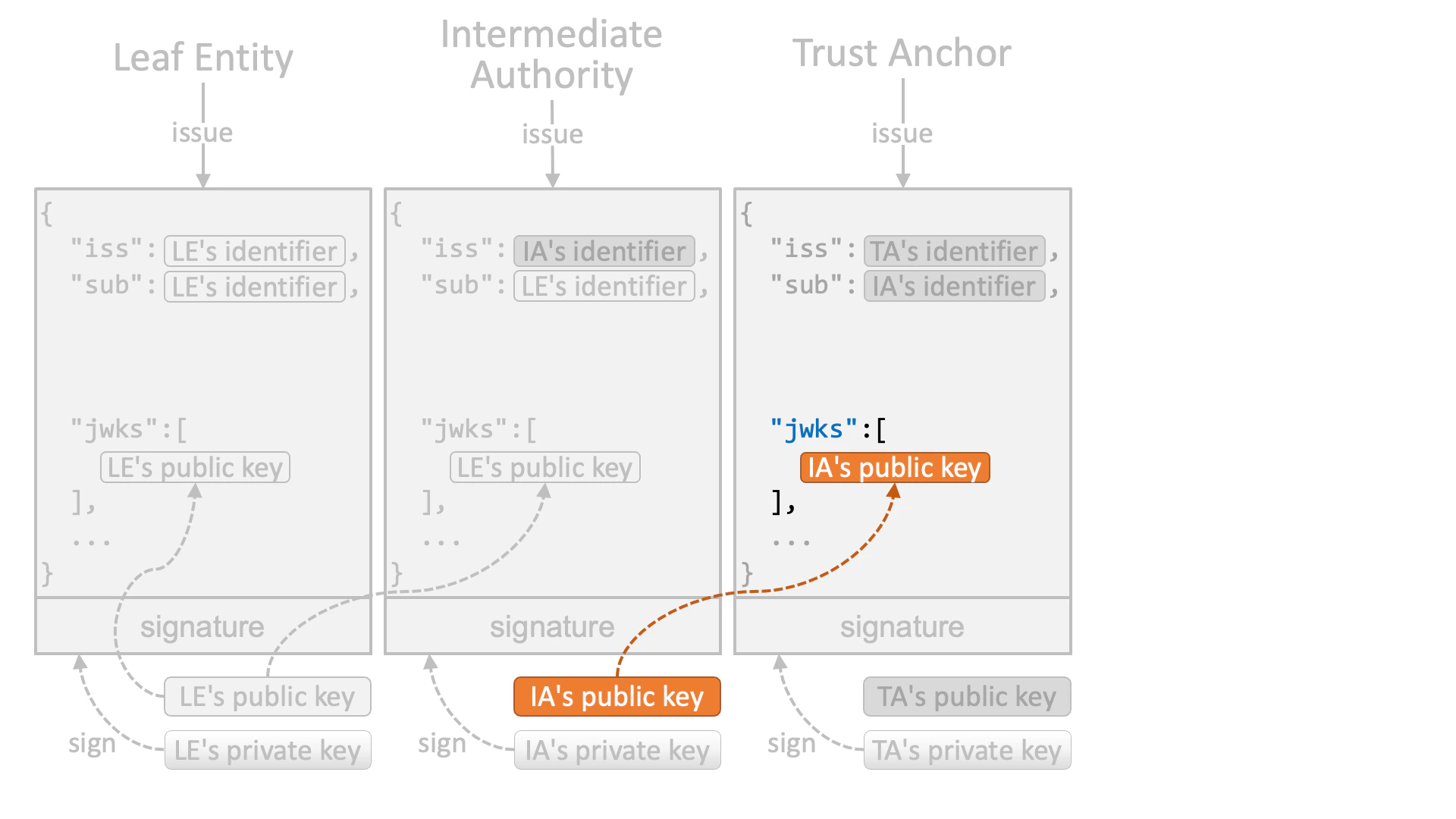

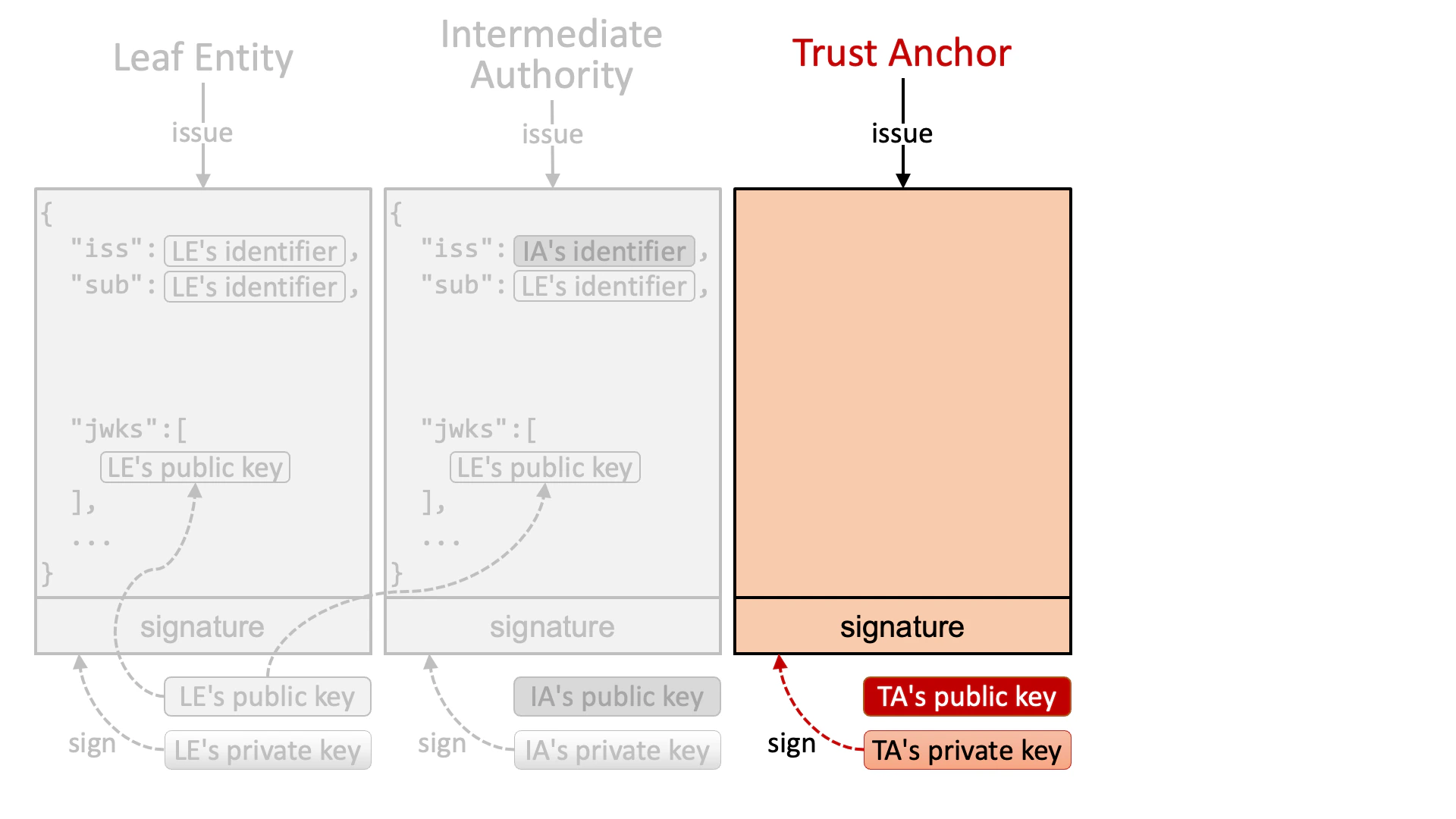

JWT Issued by Trust Anchor

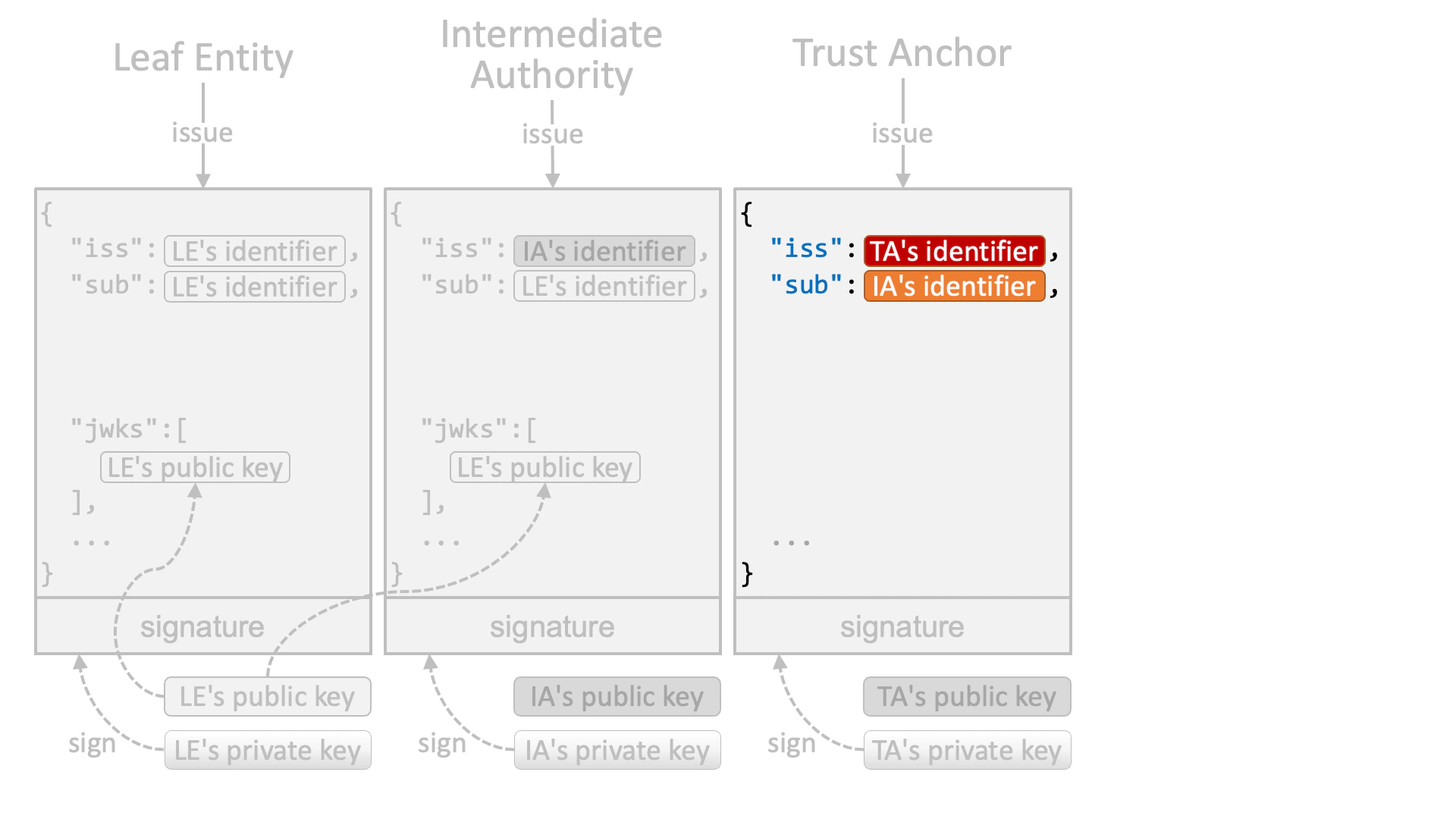

A trust chain is terminated by a JWT signed by a trust anchor’s private key. The JWT indicates that the trust anchor authorizes the last intermediate authority. The value of the sub claim is the last intermediate authority’s identifier and the value of the iss claim is the trust anchor’s identifier. If no intermediate authorities are involved, the trust anchor issues a JWT that directly authorizes the leaf entity. In that case, the sub claim holds the leaf entity’s identifier. The JWT issued by the trust anchor contains the public key of the last intermediate authority. A trust chain may optionally have one more JWT that is self-signed by the trust anchor at the end. As it is a self-signed JWT, both the iss claim and the sub claim hold the trust anchor’s identifier.

​

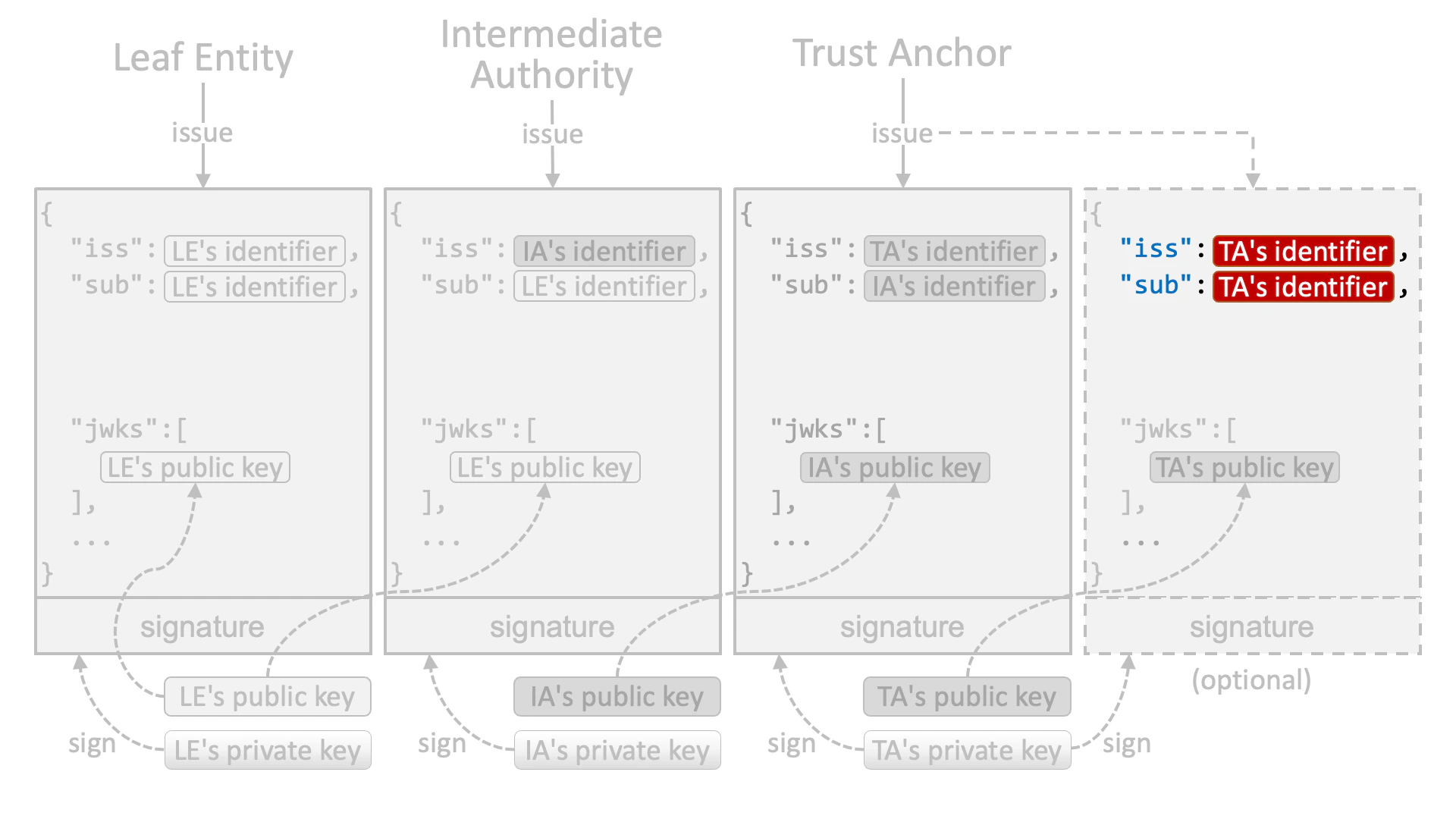

Trust Chain Summary

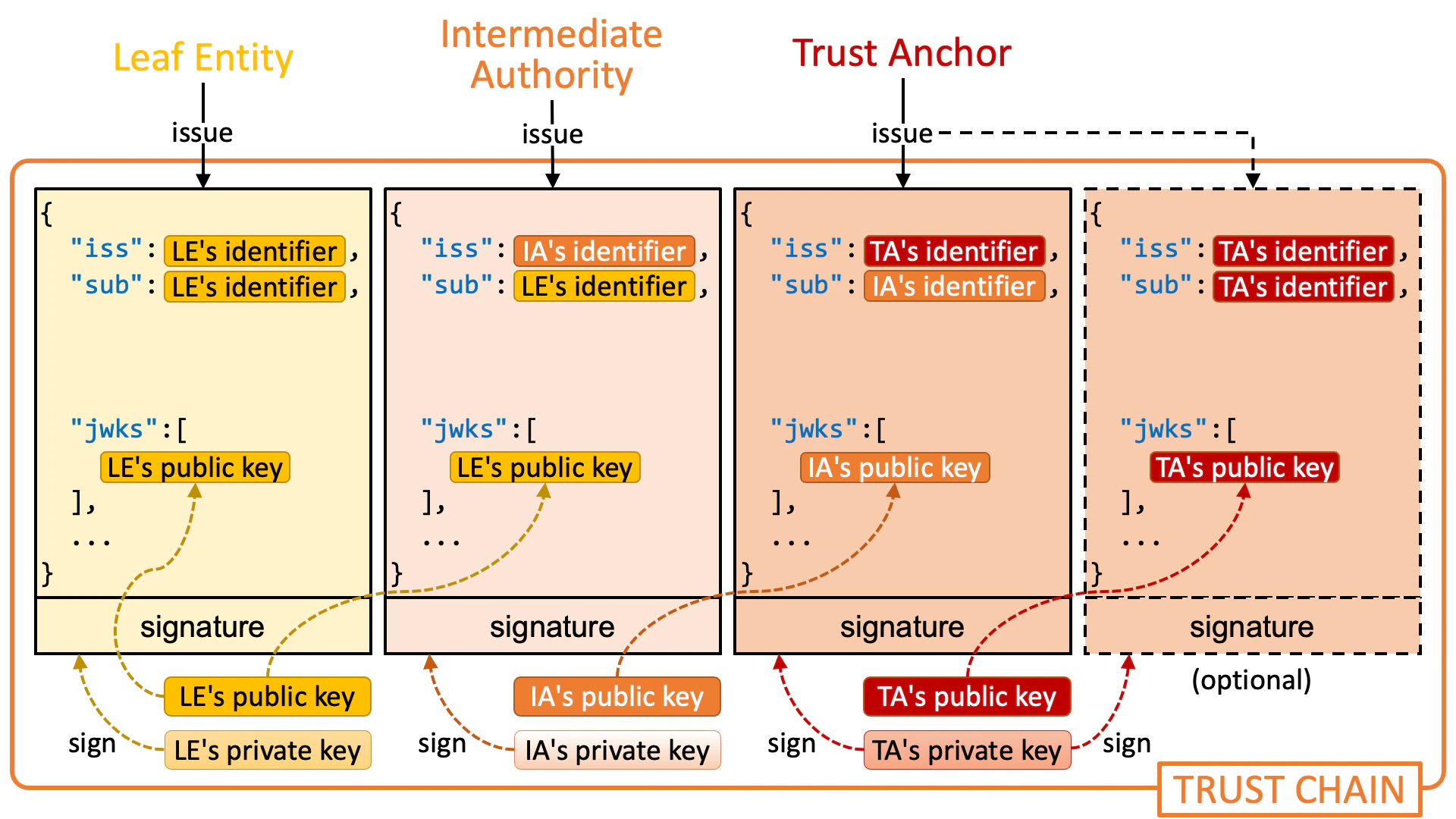

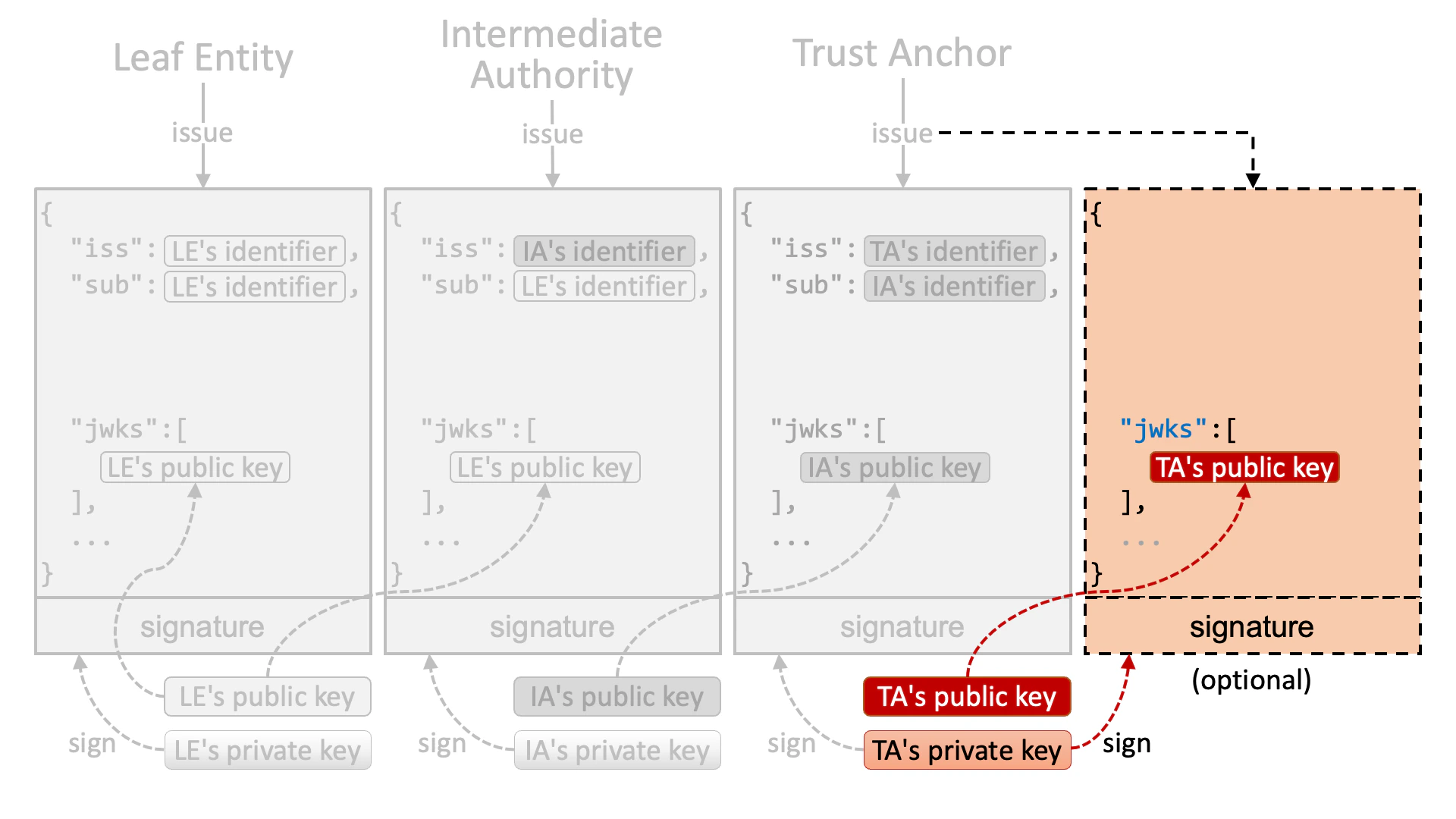

The following diagram depicts the entire trust chain.

​
Trust Chain Resolution

​
Entity Configuration

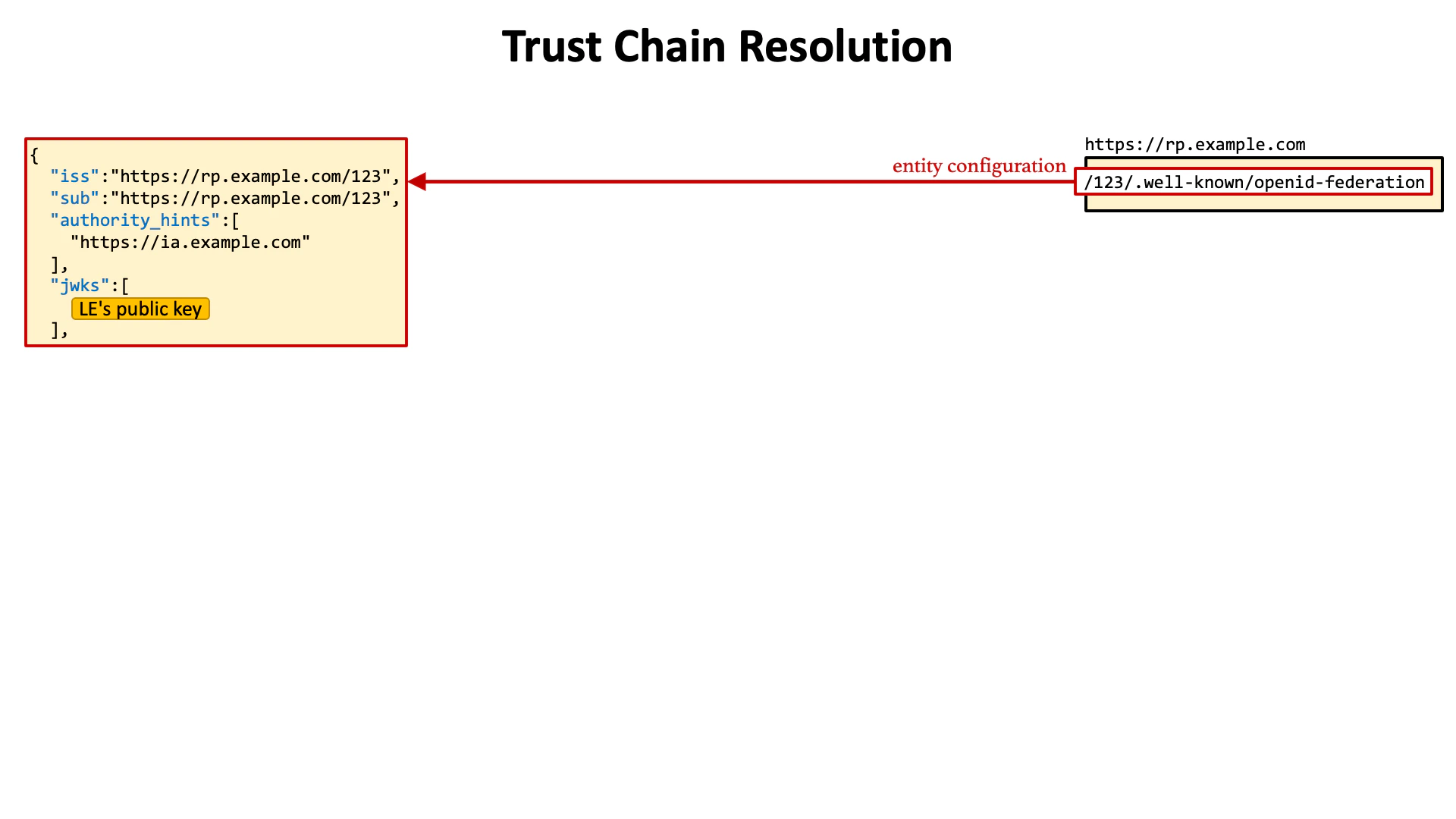

The resolution process of a trust chain starts from getting the self-signed JWT of a leaf entity. The location of the self-signed JWT is defined in the OpenID Federation specification. It is a URL constructed by concatenating the leaf entity’s identifier and the fixed string "/.well-known/openid-federation".
Leaf Entity's Identifier + /.well-known/openid-federation
If you know the specifications of OpenID Connect Discovery 1.0 and RFC 8414 OAuth 2.0 Authorization Server Metadata, you will guess that the leaf entity’s identifier is a URL that starts with http:// or https://. Your guess is correct. Participants of a federation, i.e., identity providers, relying parties, intermediate authorities and trust anchors, are called “federation entity”. Each federation entity has a globally unique identifier. The identifier is called “entity ID”. And, entity IDs must be URLs whose scheme part is either http or https. It is expected that Web servers are running on hosts identified by the URLs so that federation entities can issue JWTs that are necessary to build trust chains. For instance, when the entity ID of a relying party is https://rp.example.com/123, the self-signed JWT of the relying party is expected to be published at the following URL.
https://rp.example.com/123/.well-known/openid-federation
In general, self-signed JWTs of federation entities that are published at their respective /.well-known/openid-federation are called “entity configuration”.

​

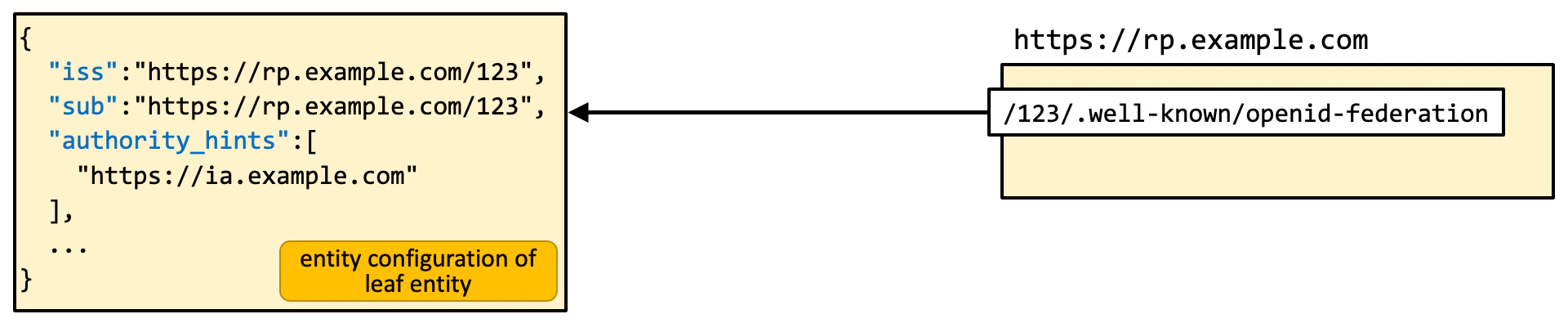

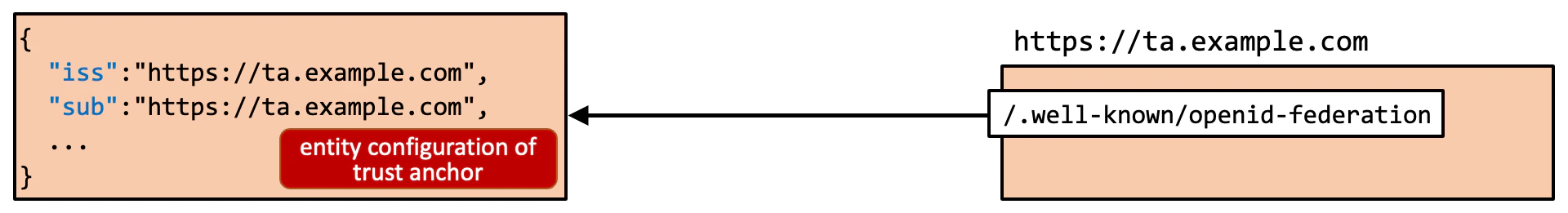

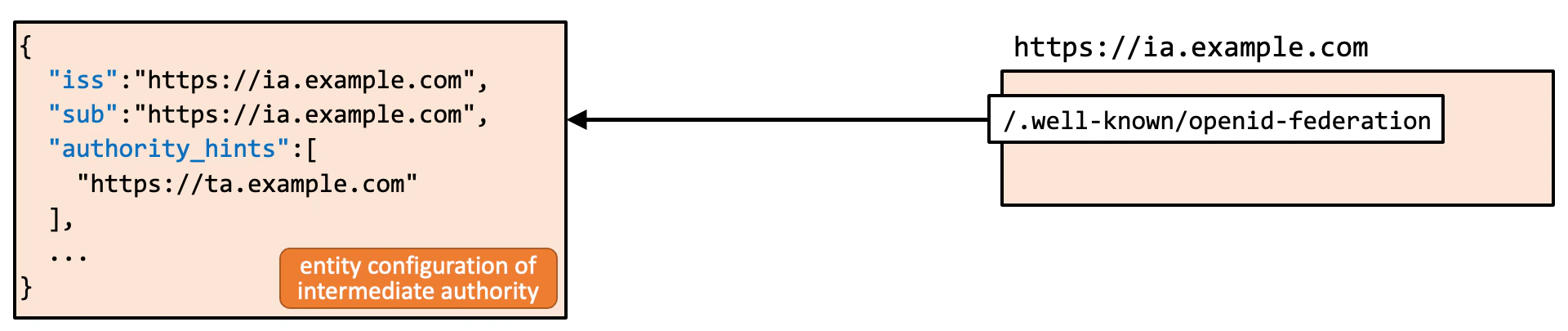

Authority Hints

The payload part of an entity configuration contains the authority_hints claim. It is a JSON array listing entity IDs of intermediate authorities and/or trust anchors that can issue a JWT indicating that the authority authorizes the federation entity of the entity configuration. For example, when a relying party whose entity ID is https://rp.example.com/123 has a direct intermediate authority whose entity ID is https://ia.example.com, the authority_hints claim in the entity configuration of the relying party contains https://ia.example.com. Likewise, if the intermediate authority has a trust anchor whose entity ID is https://ta.example.com as a direct authority, the authority_hints claim in the entity configuration of the intermediate authority contains https://ta.example.com. On the other hand, because a trust anchor has no upper authority by definition, the entity configuration of a trust anchor does not include the authority_hints claim.

​

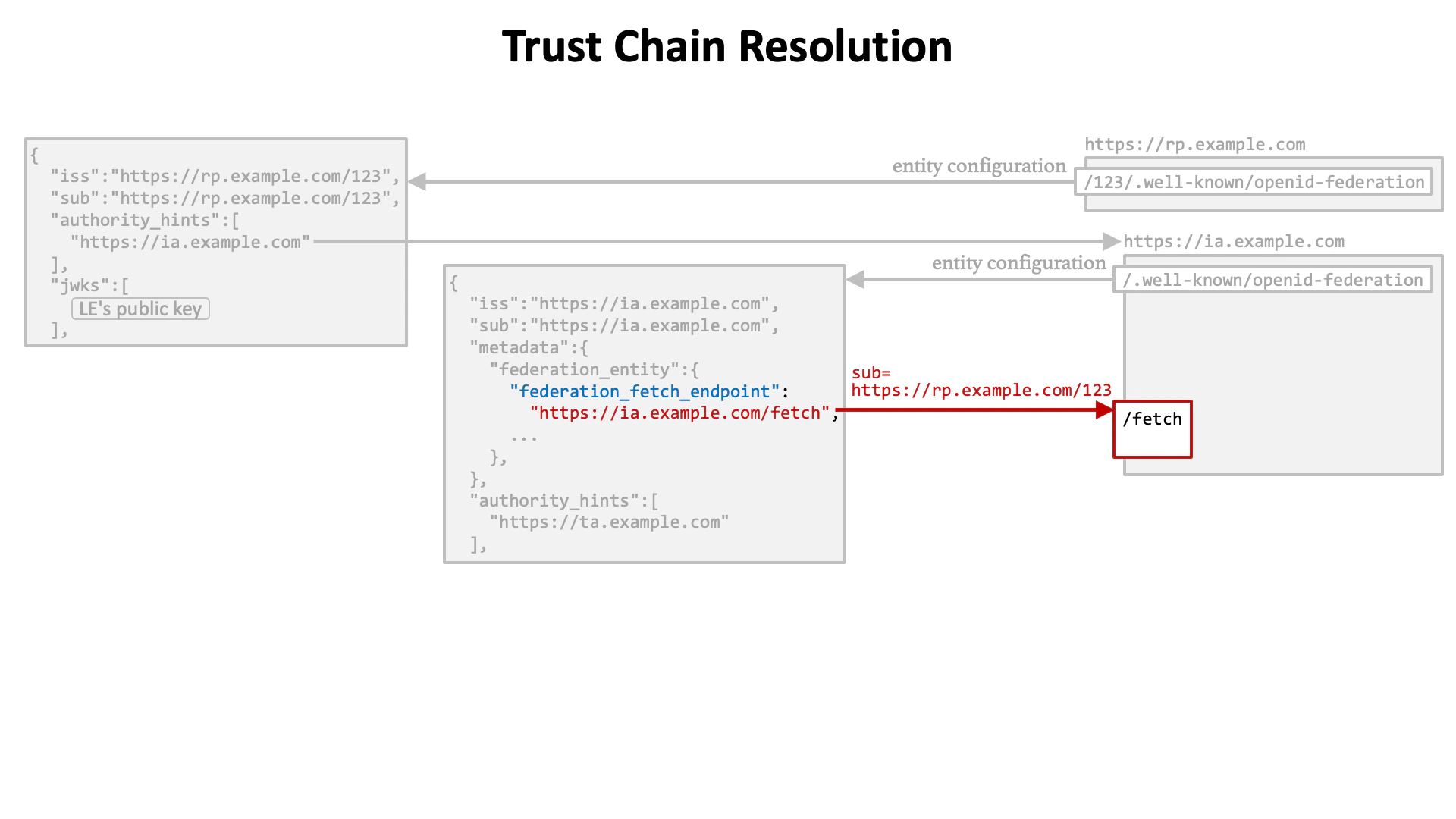

Federation Fetch Endpoint

The next step after getting the entity configuration of a leaf entity is to get a JWT from the direct authority of the leaf entity that indicates that the authority authorizes the leaf entity. Authorities are supposed to provide an endpoint that issues JWTs for the purpose. The endpoint is called “federation fetch endpoint”. The table below is a summary of the specification of the endpoint. | Request | | HTTP Method | GET | | Parameters | iss | Optional | The entity ID of the issuer. | | sub | Optional | The entity ID of the subject. | | Response | | HTTP Status Code | 200 | | Content-Type | application/entity-statement+jwt | For example, when an intermediate authority https://ia.example.com provides its federation fetch endpoint at https://ia.example.com/fetch, a JWT that indicates that the intermediate authority authorizes a federation entity https://rp.example.com/123 can be obtained by making the following HTTP request.
https://ia.example.com/fetch?sub=https://rp.example.com/123

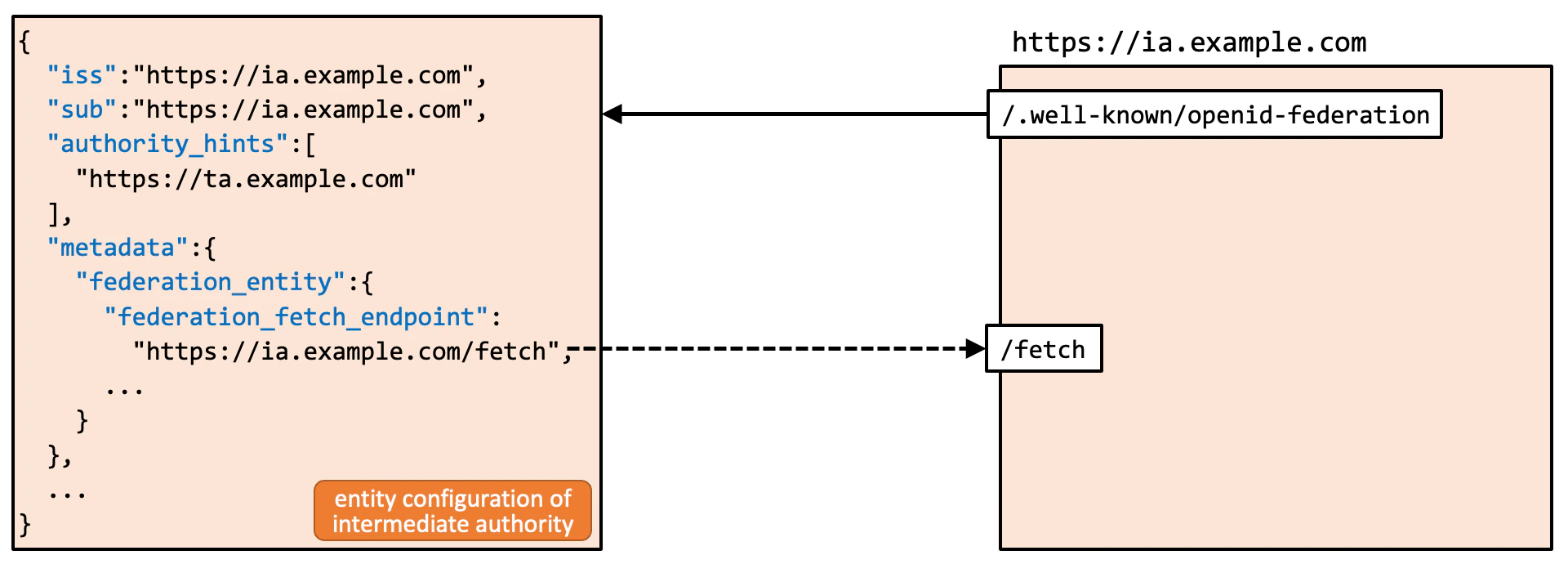

The location of the federation fetch endpoint of an authority is written in its entity configuration. The federation_fetch_endpoint claim holds the URL of the endpoint, but the claim is put at a bit deep place. It is placed inside the federation_entity JSON object which is inside the metadata JSON object. The process of fetching JWTs from federation fetch endpoints is repeated until a JWT from a trust anchor is obtained. If the trust anchor is one of trusted ones, it means that a trust chain from the leaf entity to the trust anchor can be built. On the other hand, if the trust anchor is unknown, the trust chain cannot be used to trust the leaf entity. In this case, other paths need to be tried. To be concrete, other entries in the authority_hints claim need to be tried.

​

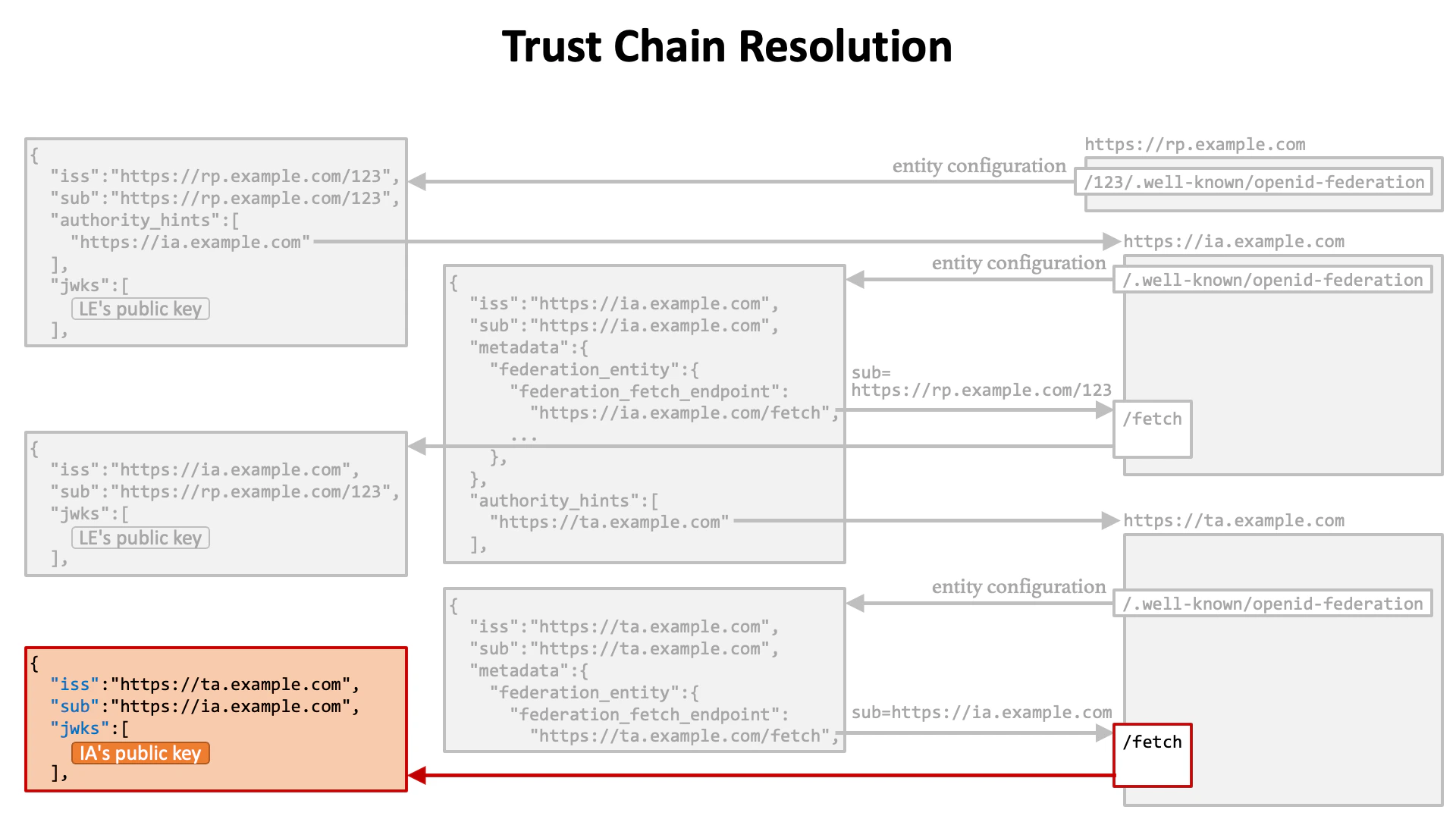

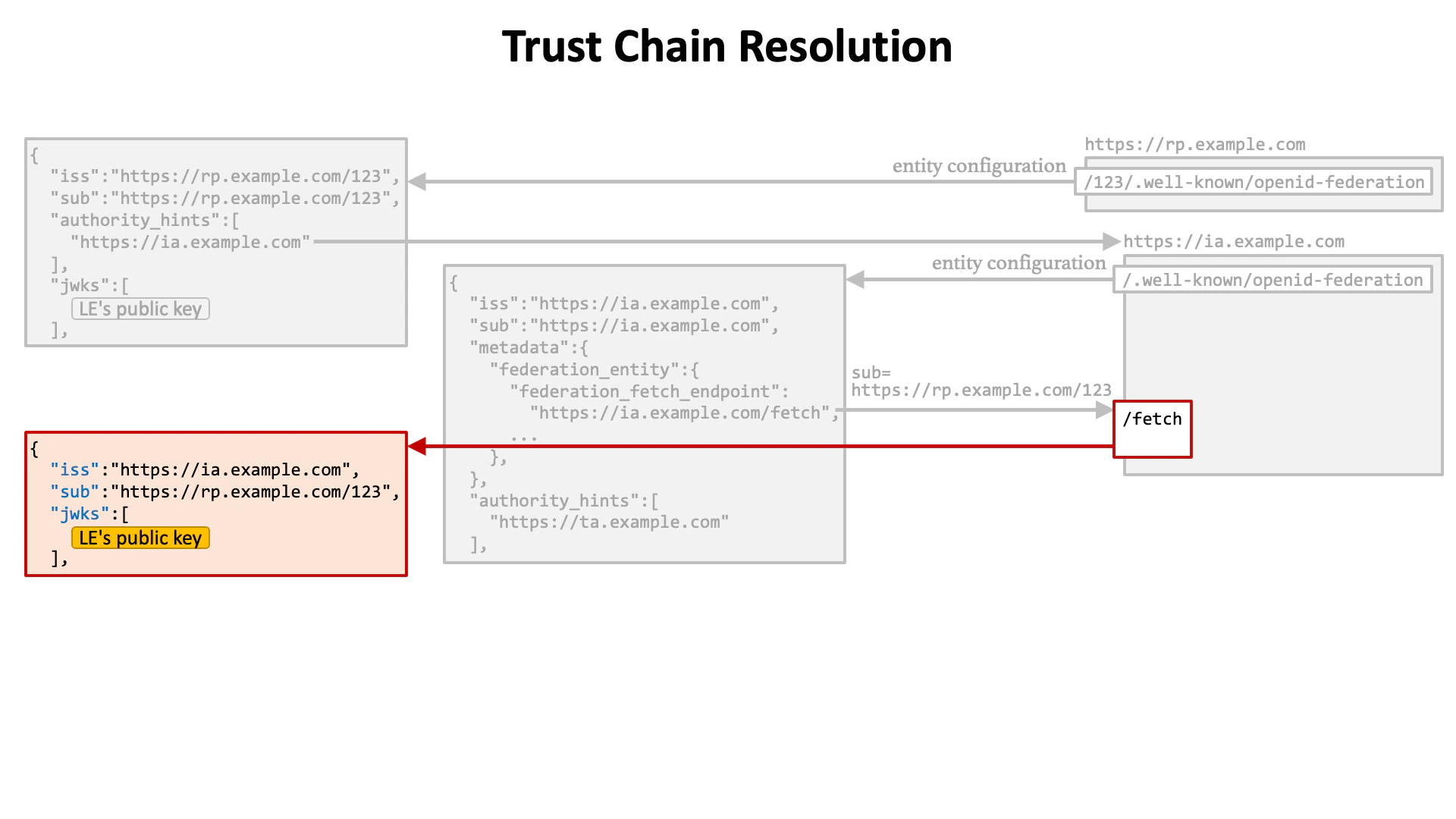

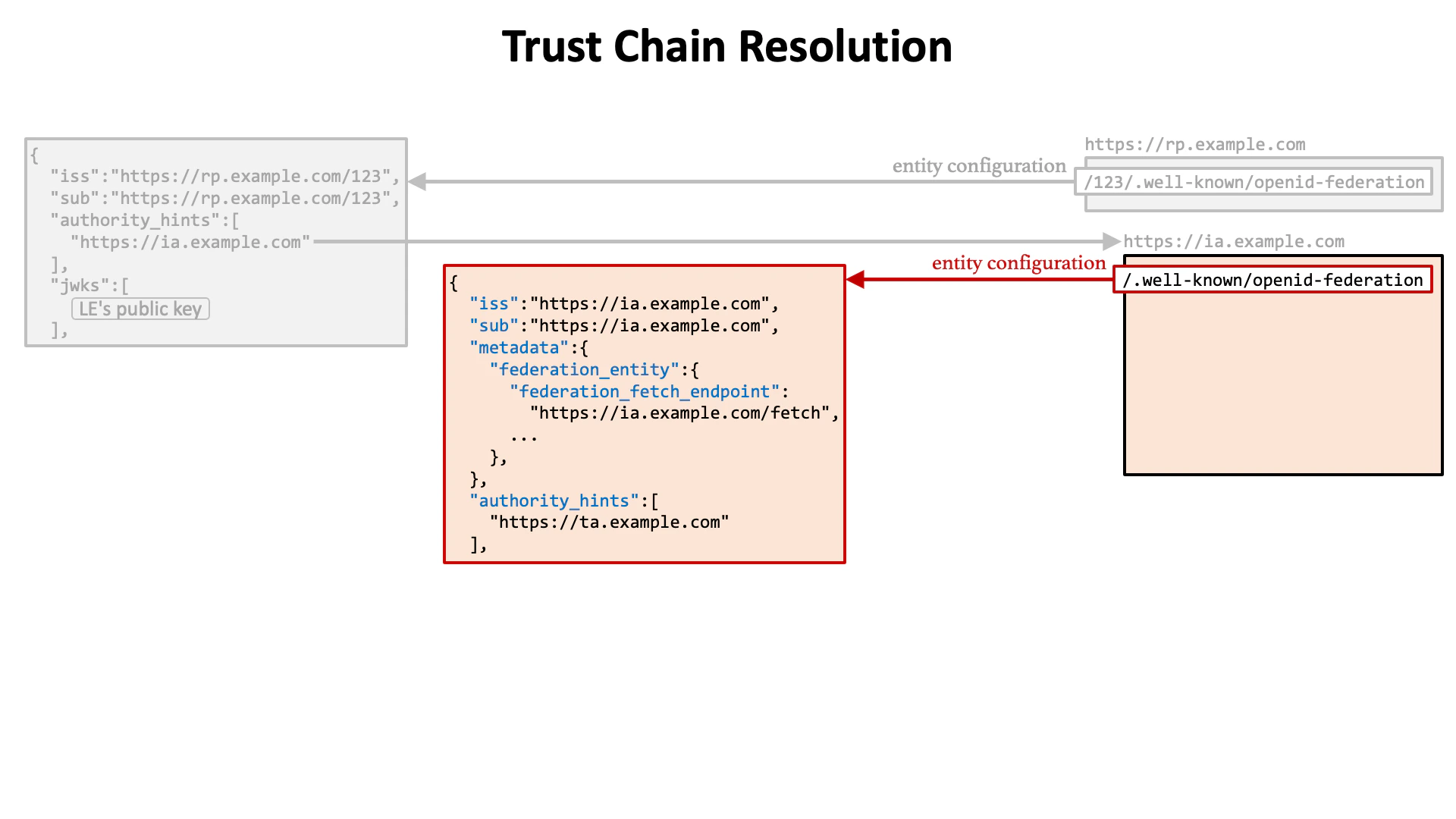

Trust Chain Resolution Flow

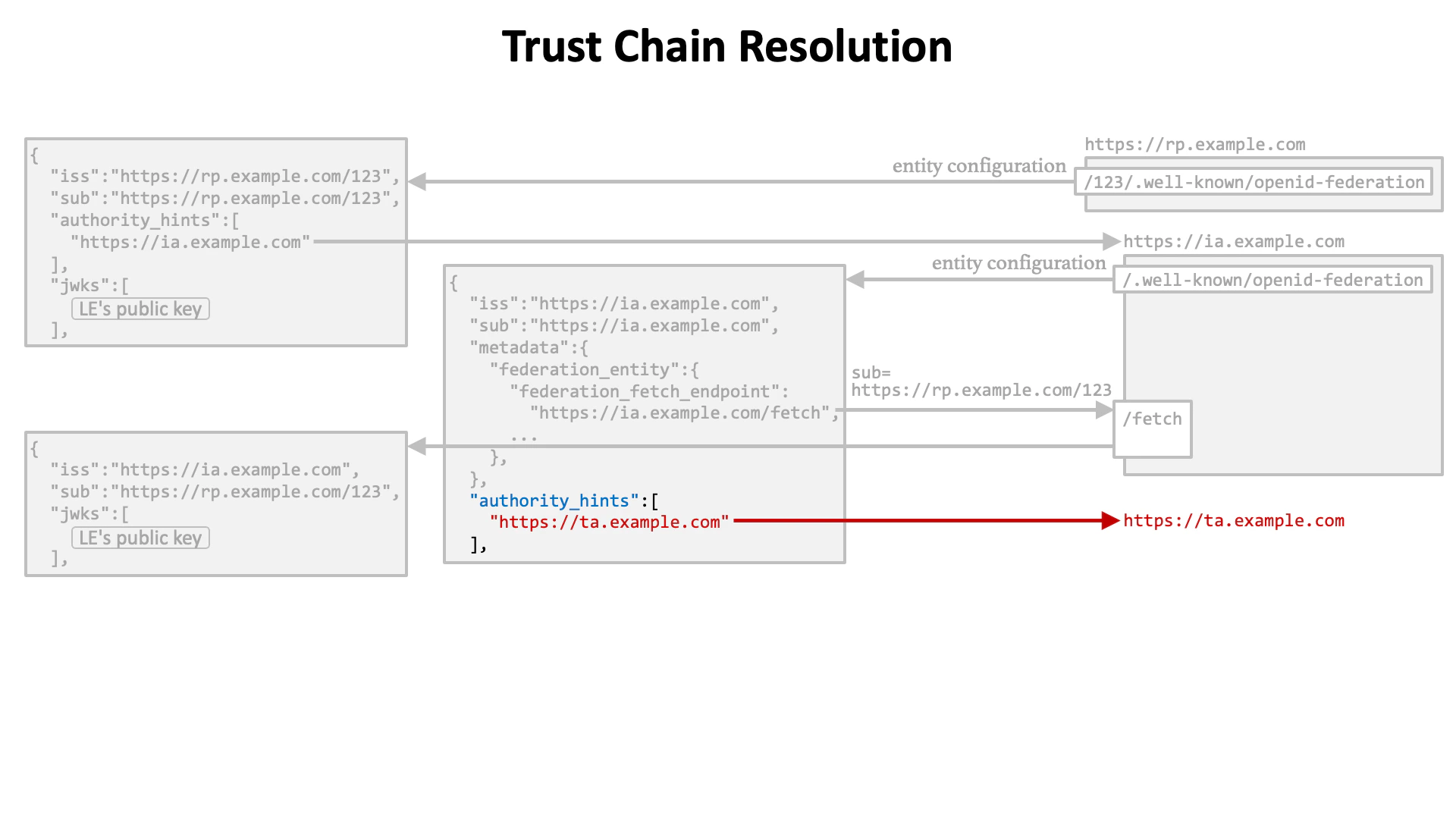

Let’s review the flow of trust chain resolution. (1) The first step is to get the entity configuration of a leaf entity. (2) The entity configuration contains the authority_hints claim. It is a JSON array listing entity IDs of intermediate authorities or trust anchors. Web servers of authorities can be identified by the entity IDs. In this example, an intermediate authority https://ia.example.com is included in the authority_hints claim. (3) The entity configuration of the intermediate authority is needed to know the URL of its federation fetch endpoint. (4) An HTTP request with the sub request parameter is sent to the federation fetch endpoint. In this example, the entity ID of the leaf entity (https://rp.example.com/123) is specified as the value of the sub request parameter. (5) The federation fetch endpoint returns a JWT that indicates that the intermediate authority authorizes the leaf entity. (6) The upper authorities of the intermediate authority are listed in the authority_hints claim in the entity configuration of the intermediate authority. In this example, a trust anchor https://ta.example.com is included in the authority_hints claim. (7) The entity configuration of the trust anchor is needed to know the URL of its federation fetch endpoint. (8) An HTTP request with the sub request parameter is sent to the federation fetch endpoint. In this example, the entity ID of the intermediate authority (https://ia.example.com) is specified as the value of the sub request parameter. (9) The federation fetch endpoint returns a JWT that indicates that the trust anchor authorizes the intermediate authority. (10) The entity configuration of the leaf entity and the JWTs issued from the federation fetch endpoints consist of a trust chain.

​

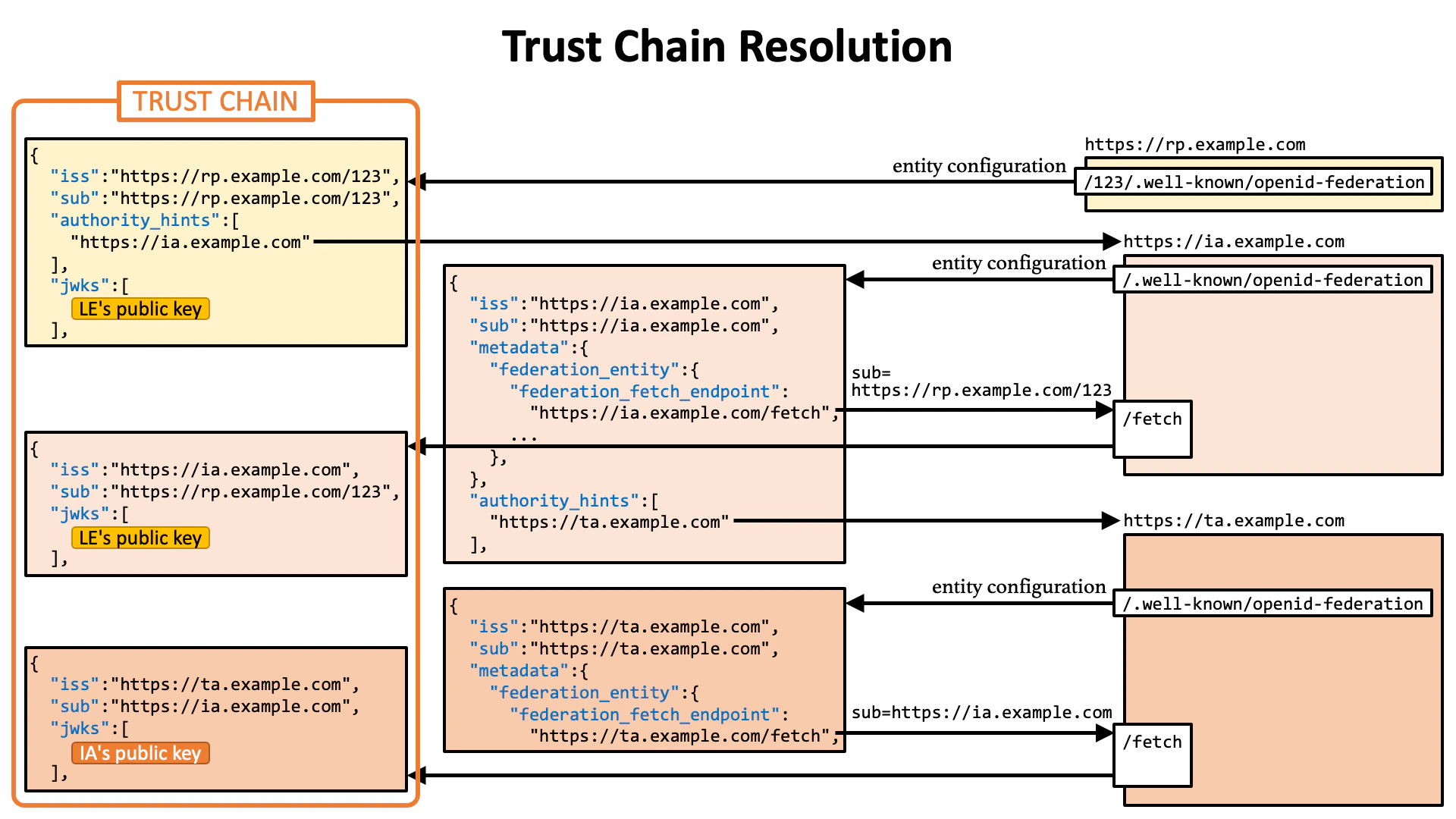

Trust Chain Resolution Summary

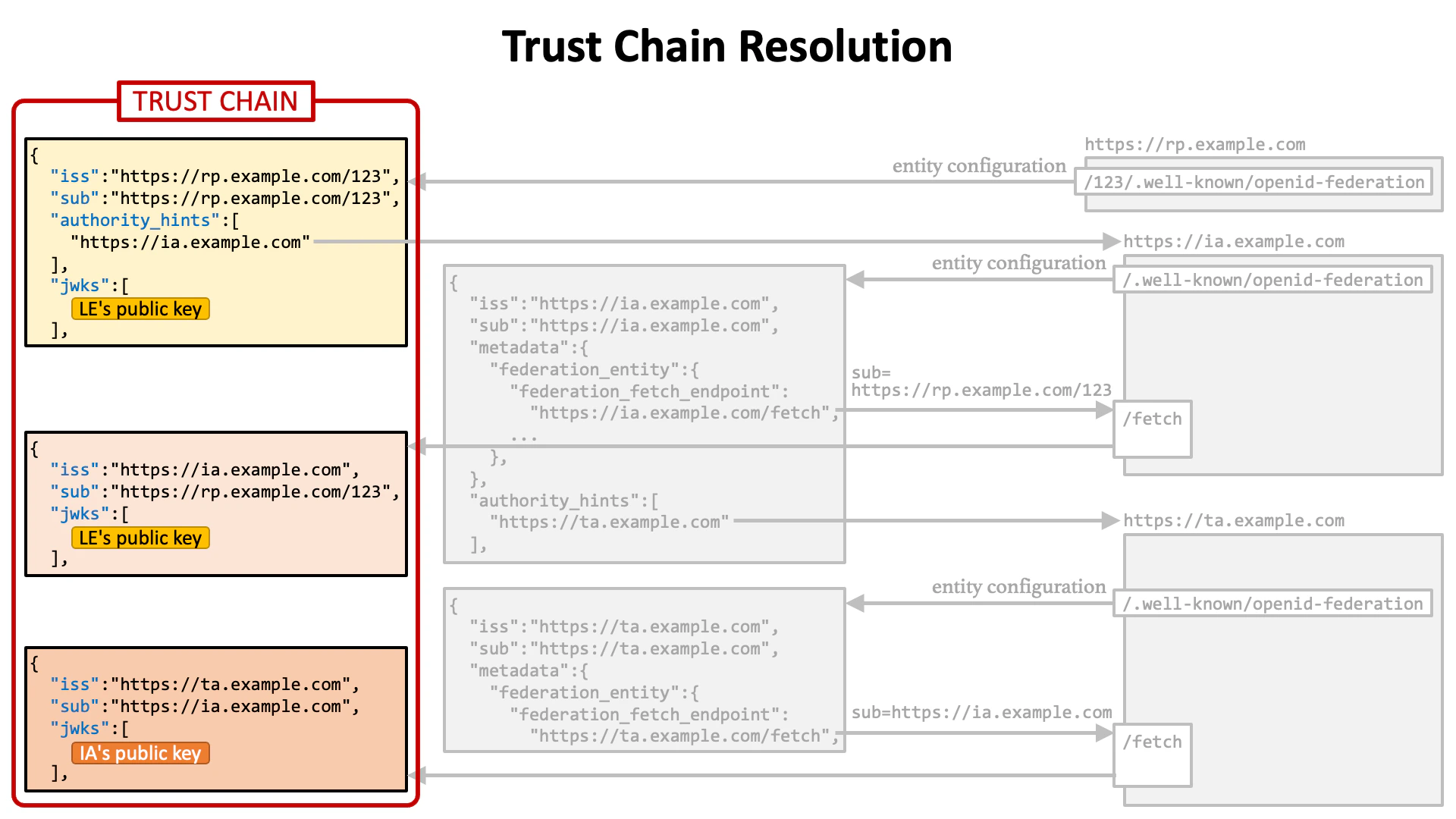

The following diagram depicts the entire flow of trust chain resolution. All the JWTs that appear in trust chain resolution are called “entity statement”. An entity configuration is a kind of entity statement.

​
Metadata

An entity configuration contains metadata of the federation entity.

​

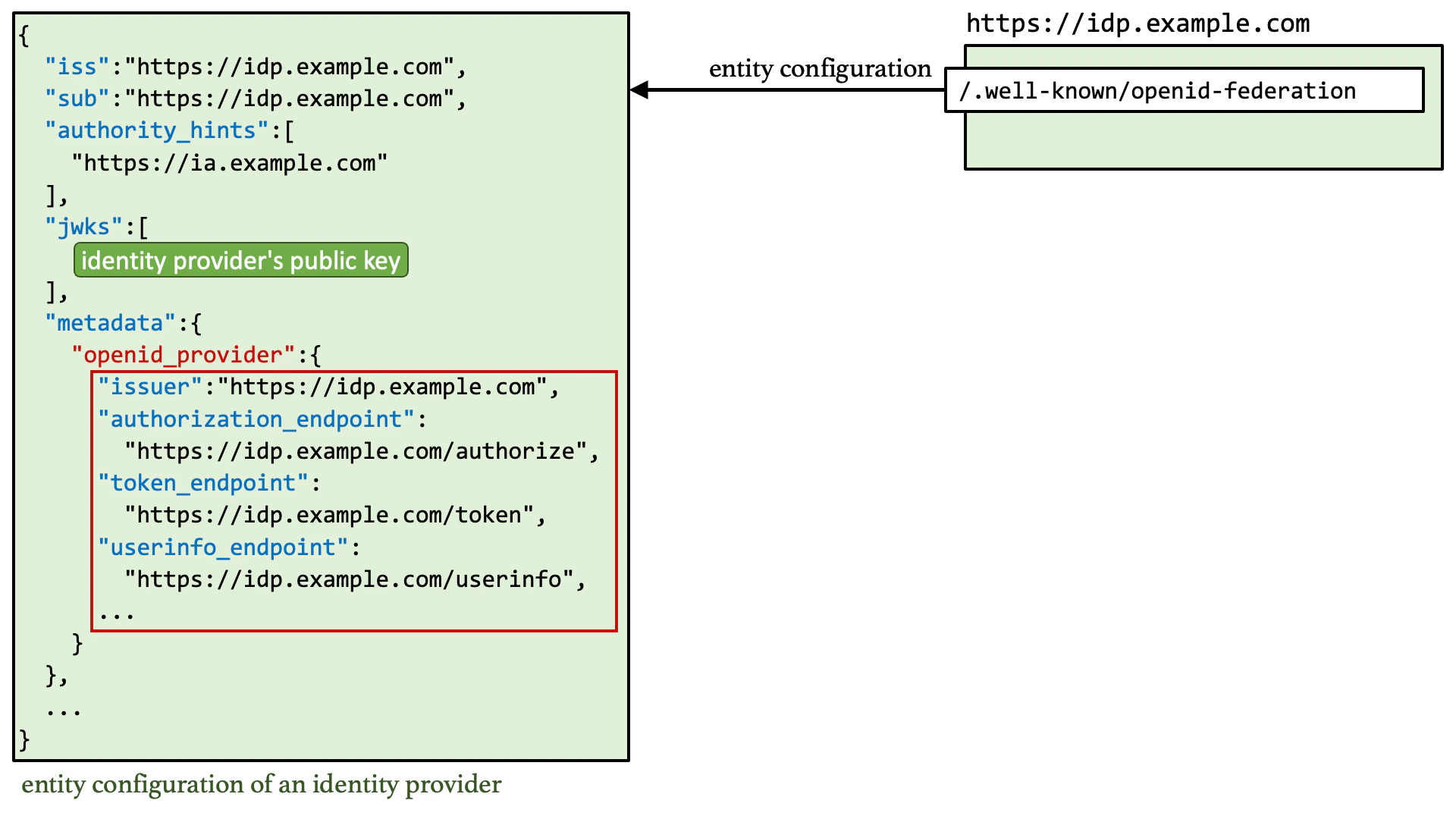

Identity Provider Metadata

Metadata of an identity provider are put in the openid_provider JSON object which is in the metadata JSON object. Metadata that are defined in OpenID Connect Discovery 1.0, RFC 8414 OAuth 2.0 Authorization Sever Metadata and other standard specifications may appear in the openid_provider JSON object. In addition, the OpenID Federation specification defines the following server metadata.
  • client_registration_types_supported
  • organization_name
  • federation_registration_endpoint
  • request_authentication_methods_supported
  • request_authentication_signing_alg_values_supported
  • signed_jwks_uri
  • jwks

​
Relying Party Metadata

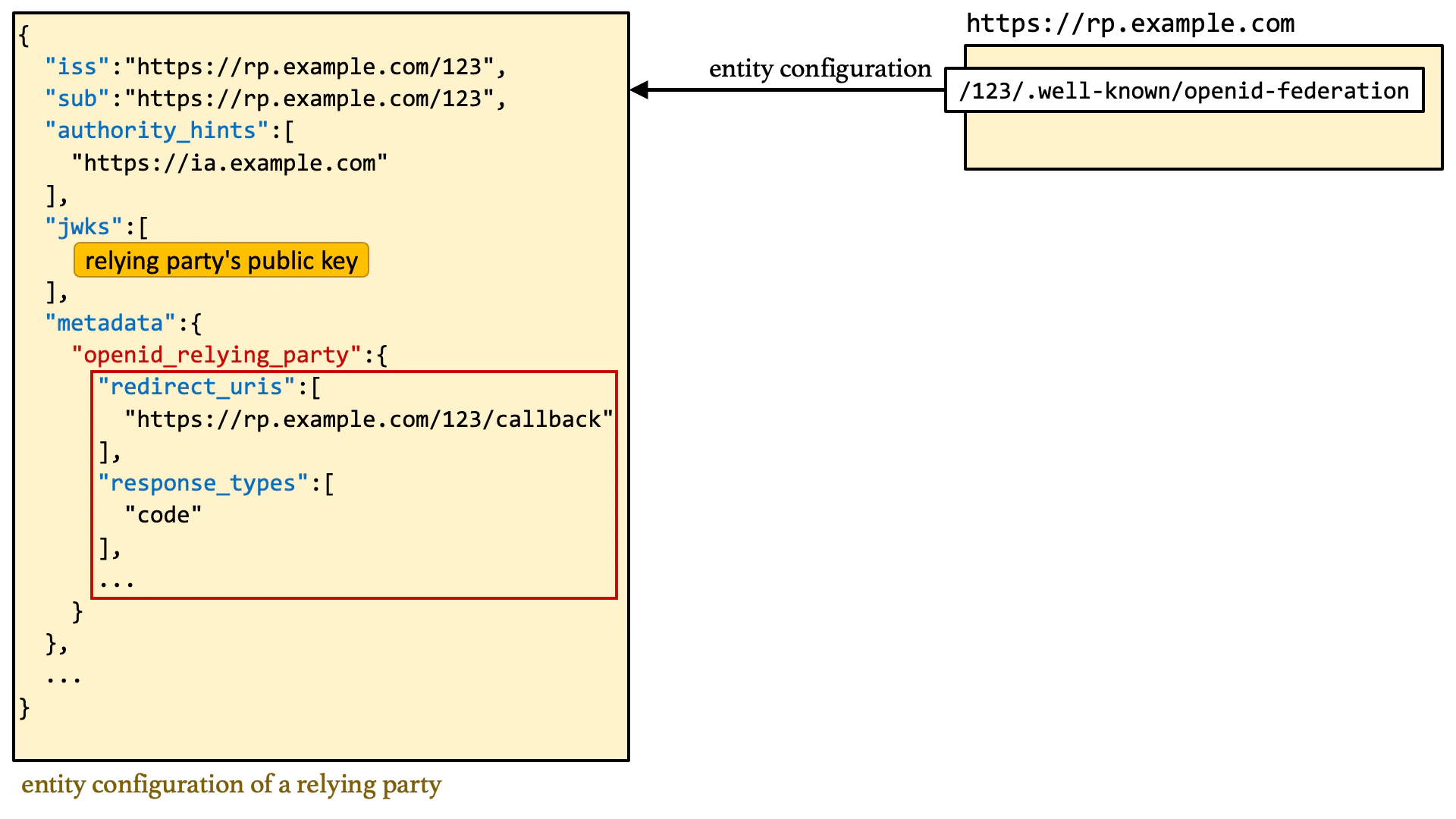

Metadata of a relying party are put in the openid_relying_party JSON object which is in the metadata JSON object. Metadata that are defined in OpenID Connect Dynamic Client Registration 1.0, RFC 7591 OAuth 2.0 Dynamic Client Registration Protocol and other standard specifications may appear in the openid_relying_party JSON object. In addition, the OpenID Federation specification defines the following client metadata.
  • client_registration_types
  • organization_name
  • signed_jwks_uri

​

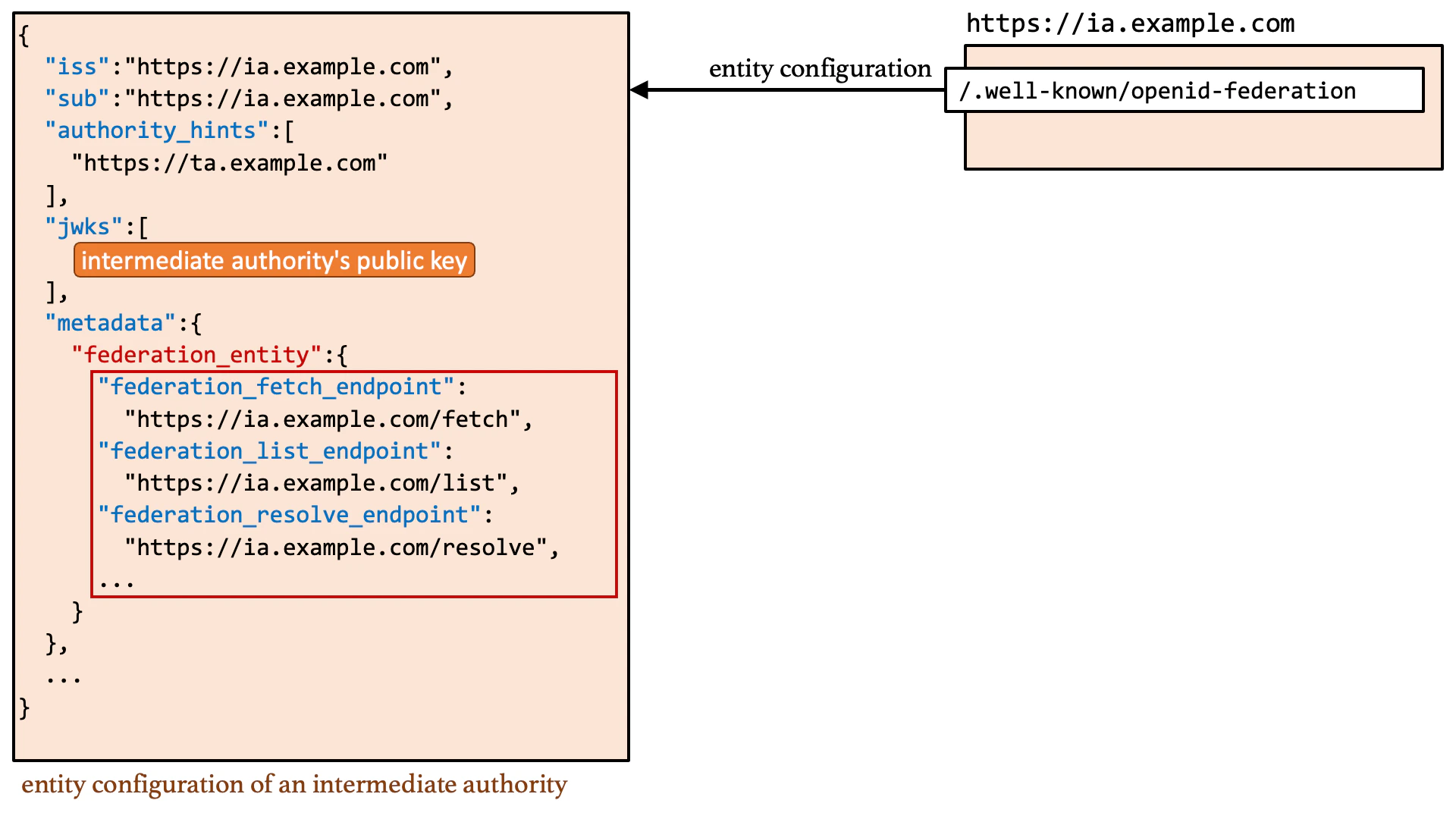

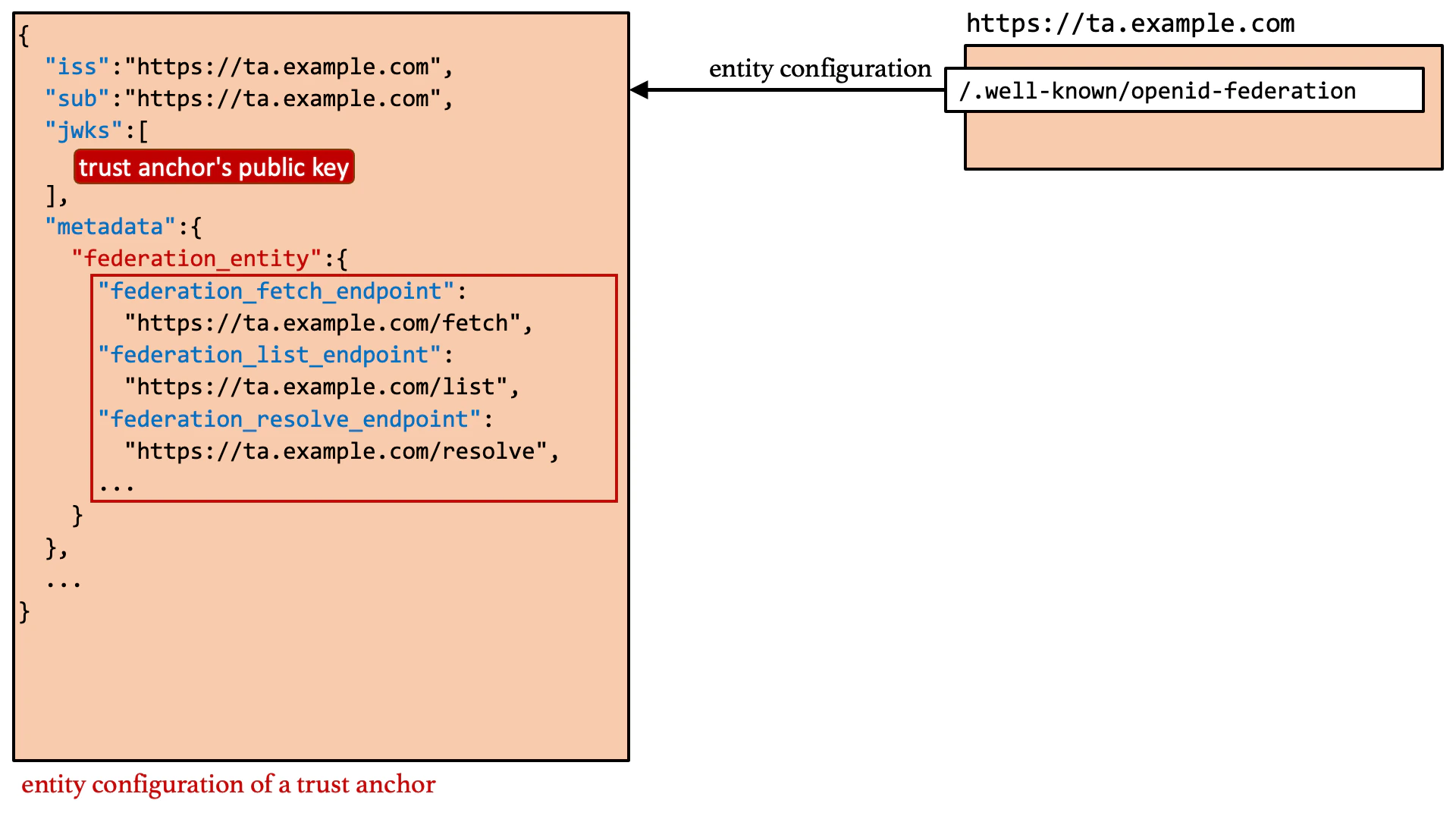

Authority Metadata

Metadata of authorities (intermediate authorities and trust anchors) are put in the federation_entity JSON object which is in the metadata JSON object. The OpenID Federation specification defines the following metadata for authorities.
  • federation_fetch_endpoint
  • federation_list_endpoint
  • federation_resolve_endpoint
  • federation_trust_mark_status_endpoint
  • organization_name
  • contacts
  • logo_uri
  • policy_uri
  • homepage_uri

​

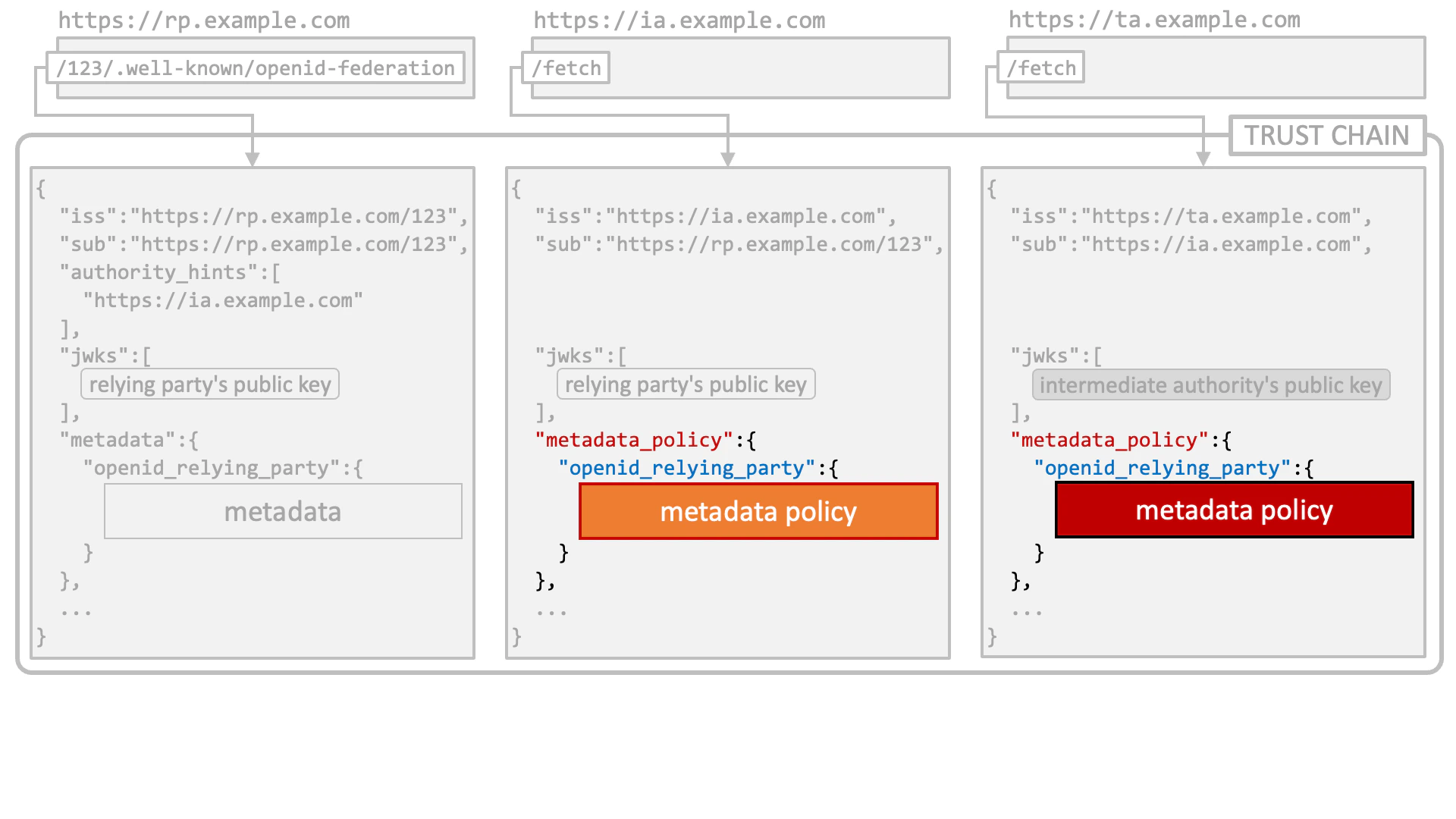

Metadata Policy

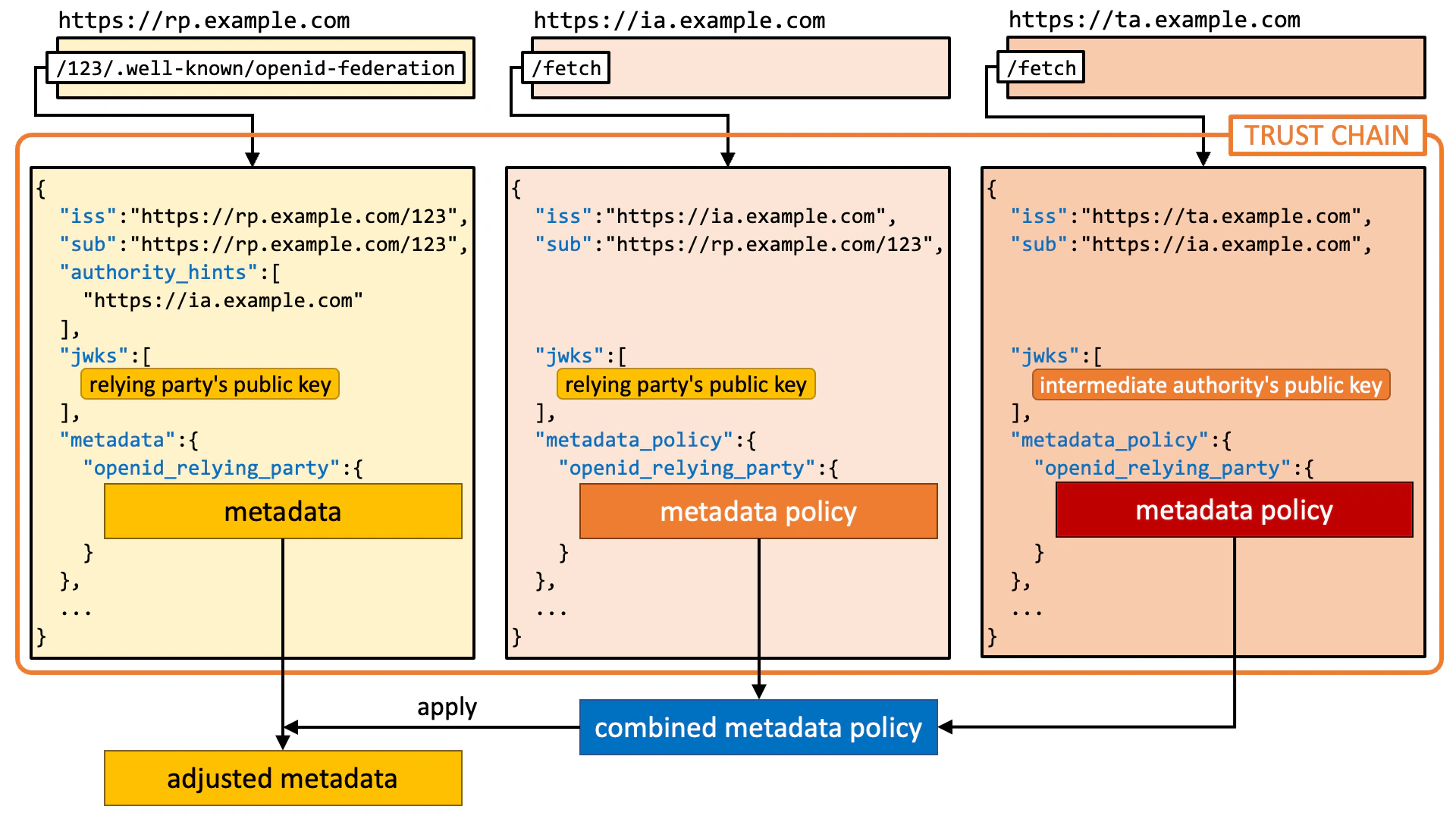

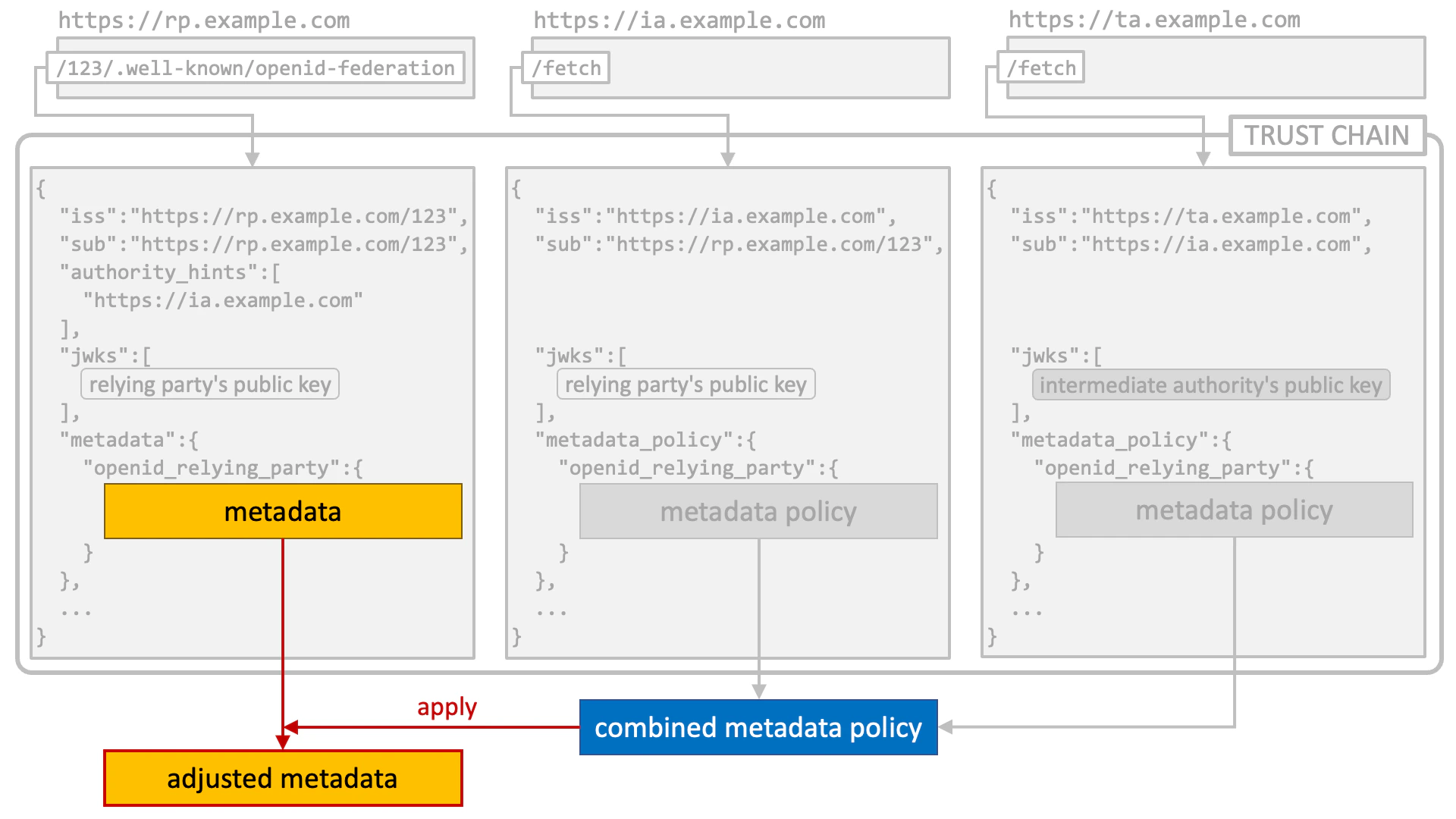

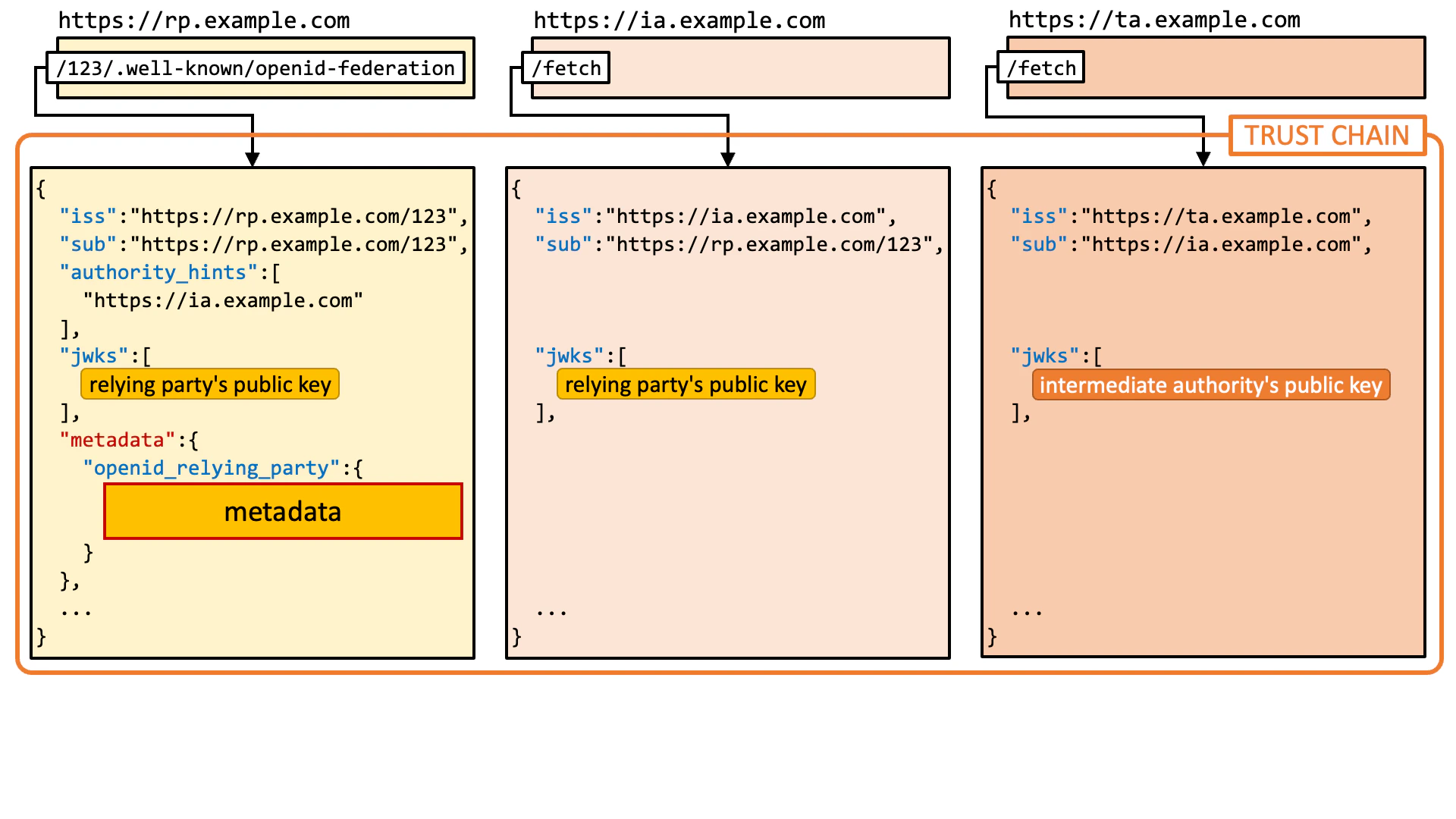

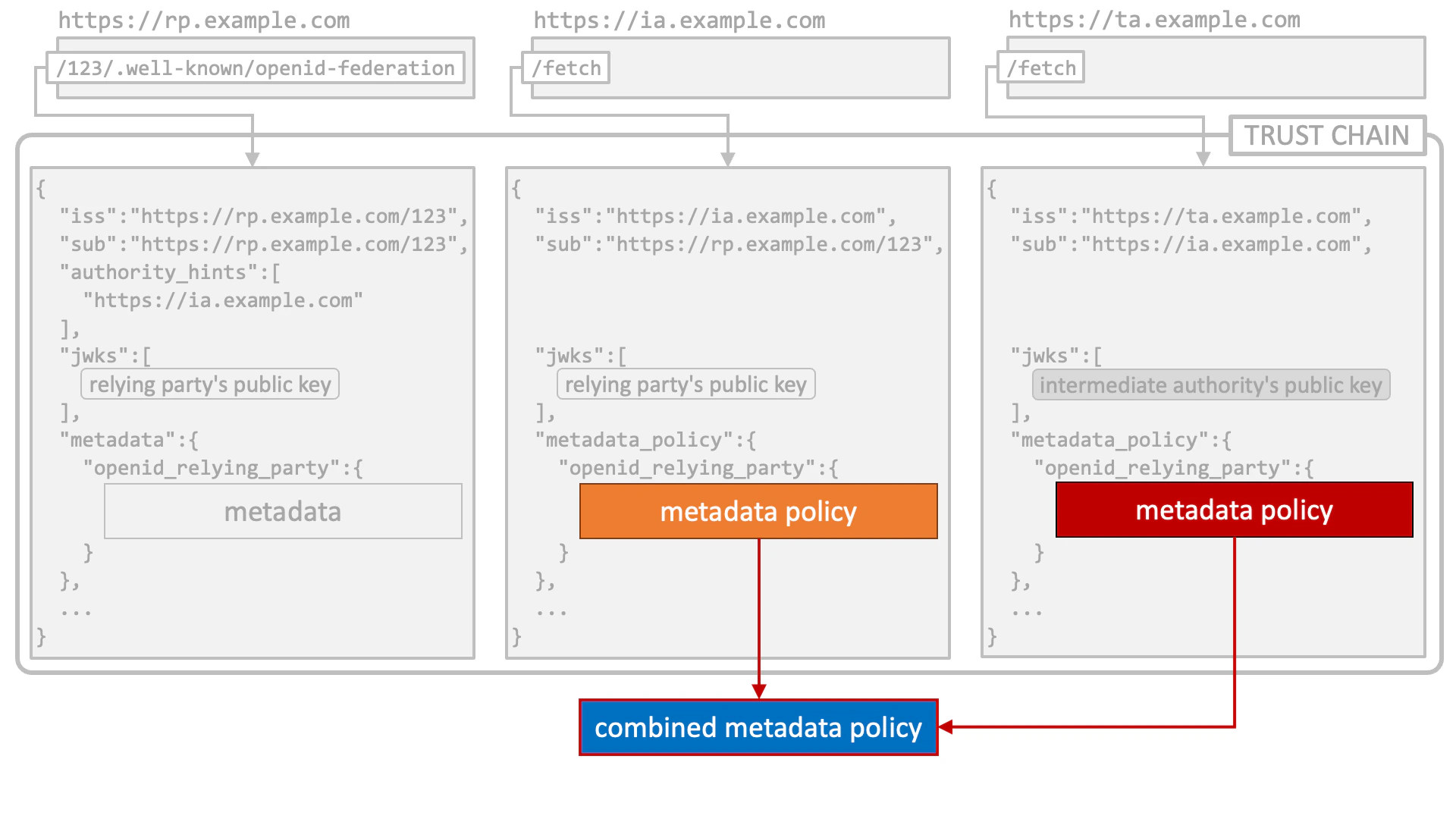

The entity configuration of the leaf entity in a trust chain includes metadata of the leaf entity. The metadata claim is used to hold the metadata. On the other hand, other JWTs in the trust chain issued by authorities may include metadata policies that are used to adjust the metadata of the leaf entity. The metadata_policy claim is used to hold the metadata policy. The metadata policies are combined before use. Then, the combined metadata policy is applied to the metadata of the leaf entity. Metadata used by a federation is the metadata after the adjustment. The following diagram depicts the flow of metadata policy application. See the OpenID Federation specification for details about metadata policy.

​
Client Registration

In a typical implementation of identity provider, identifiers of relying parties (clients) are under the management of the identity provider. The identifiers are unique only in the realm of the identity provider. On the other hand, in the OpenID Federation world, every federation entity has a globally unique identifier. An interesting characteristic of OpenID Federation is that the globally unique identifiers, i.e., entity IDs, can be used as a client ID in OAuth/OIDC requests. For example, an authorization request like below can be made. The point to pay attention to in the example is that the value of the client_id request parameter is the entity ID of the relying party.
https://idp.example.com/authorize?request_uri=...&client_id=https://rp.example.com/123

​
Automatic Client Registration

When the client ID in an OAuth/OIDC request is unknown but looks like an entity ID, an identity provider that supports OpenID Federation tries to find a trust chain that starts from the entity ID and ends with one of trust anchors that the identity provider trusts. If such a trust chain is found, the identity provider automatically registers a new client with the entity ID and metadata and continues to process the OAuth/OIDC request. The discovery document (OpenID Connect Discovery 1.0) of an identity provider that supports automatic client registration includes automatic in the client_registration_types_supported server metadata. Note that the OpenID Federation specification defines the client_registration_types_supported server metadata as mandatory. Also, the client_registration_types client metadata of the client being automatically registered must include automatic. Note that the OpenID Federation specification defines the client_registration_types client metadata as mandatory.

​
Request Authentication

When an OAuth/OIDC request triggers automatic client registration, the request needs to be authenticated in some way or other. The OpenID Federation specification requires the requester to prove that it has a private key that is paired with a public key in the request. The specification lists the following as available request authentication methods.
  1. request_object - Request object signed with an asymmetric algorithm.
  2. private_key_jwt - Client authentication using client assertion.
  3. tls_client_auth - Client authentication using X.509 certificate.
  4. self_signed_tls_client_auth - Client authentication using X.509 certificate.
References:Request Object — Implementer’s note about JAR (JWT-Secured Authorization Request) Client Authentication — OAuth 2.0 Client Authentication X.509 Certificate — Illustrated X.509 Certificate

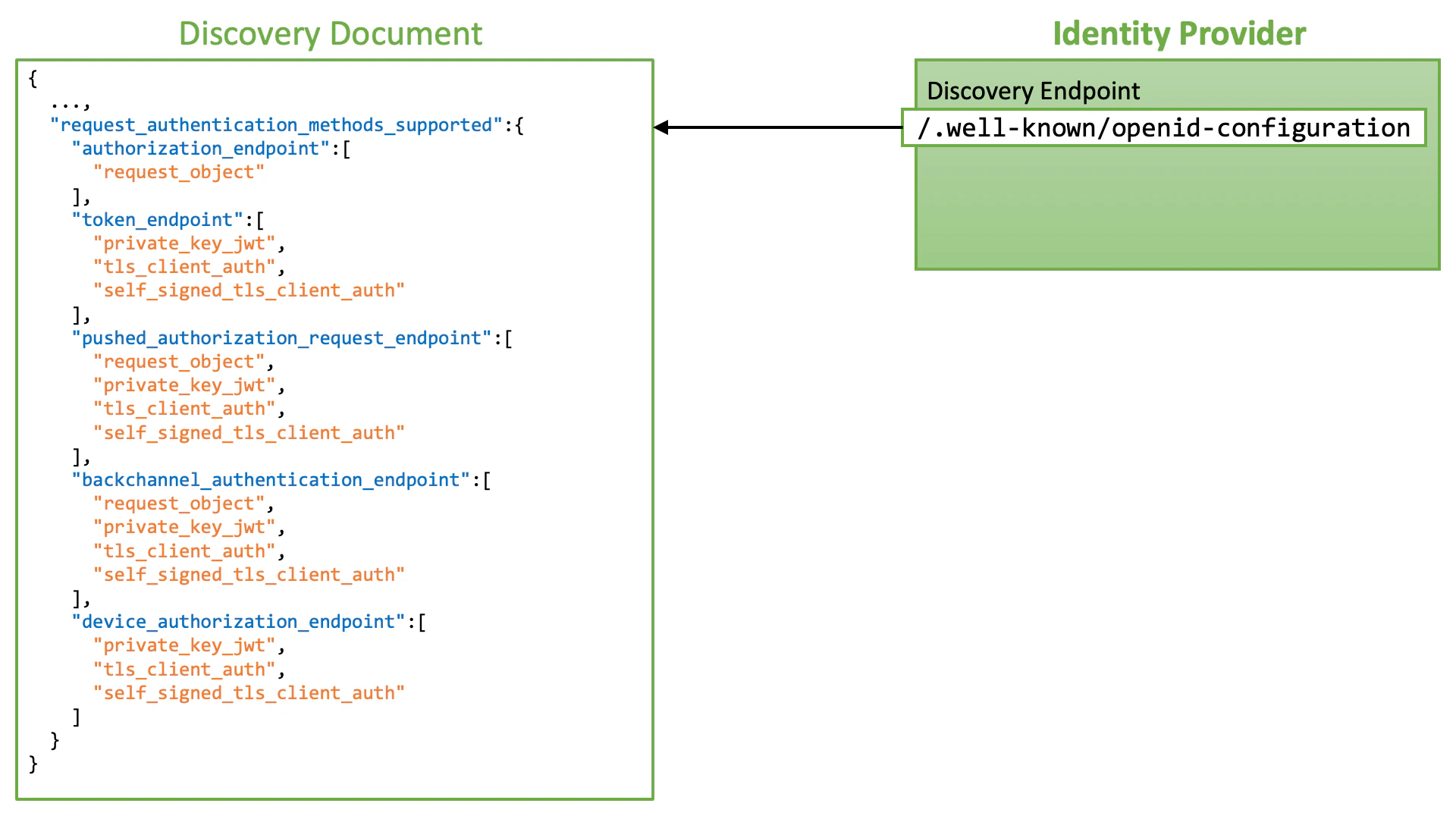

Automatic client registration may happen at various endpoints, but available request authentication methods vary depending on characteristics of respective endpoints. For example, request authentication methods based on client authentication are not usable at the authorization endpoint because client authentication is not performed at the authorization endpoint. Likewise, the request authentication method using a request object is not usable at the token endpoint because the token endpoint recognizes neither the request request parameter nor the request_uri request parameter. The following table shows availability of request authentication methods per endpoint. | Endpoint | Request Authentication Methods | | request_object | private_key_jwt | tls_client_auth | self_signed_tls_client_auth | | Authorization | ✓ | N/A | N/A | N/A | | Token | N/A | ✓ | ✓ | ✓ | | PAR | ✓ | ✓ | ✓ | ✓ | | Backchannel Authentication | ✓ | ✓ | ✓ | ✓ | | Device Authorization | N/A | ✓ | ✓ | ✓ |
References:Authorization Endpoint — The OAuth 2.0 Authorization Framework Token Endpoint — The OAuth 2.0 Authorization Framework PAR Endpoint — RFC 9126 OAuth 2.0 Pushed Authorization Requests Backchannel Authentication Endpoint — OpenID Connect Client-Initiated Backchannel Authentication Flow - Core 1.0 Device Authorization Endpoint — RFC 8628 OAuth 2.0 Device Authorization Grant
The discovery document of an identity provider that supports automatic client registration is supposed to include the request_authentication_methods_supported server metadata that indicates which request authentication methods are supported at which endpoints. The value of the server metadata is a JSON object. Property names that appear in the JSON object are endpoint names such as authorization_endpoint. A property value is a JSON array listing request authentication methods available at the corresponding endpoint.

​

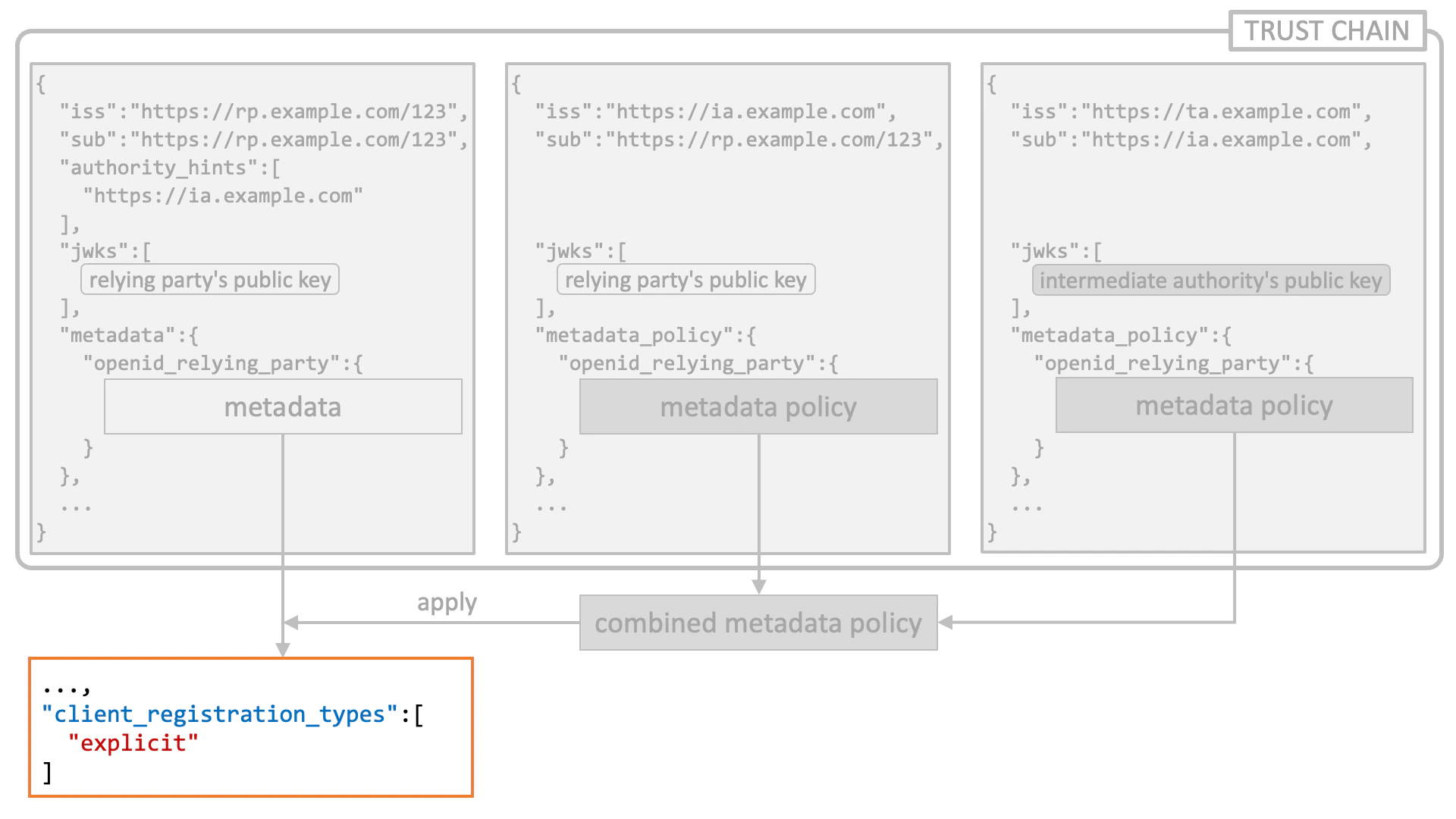

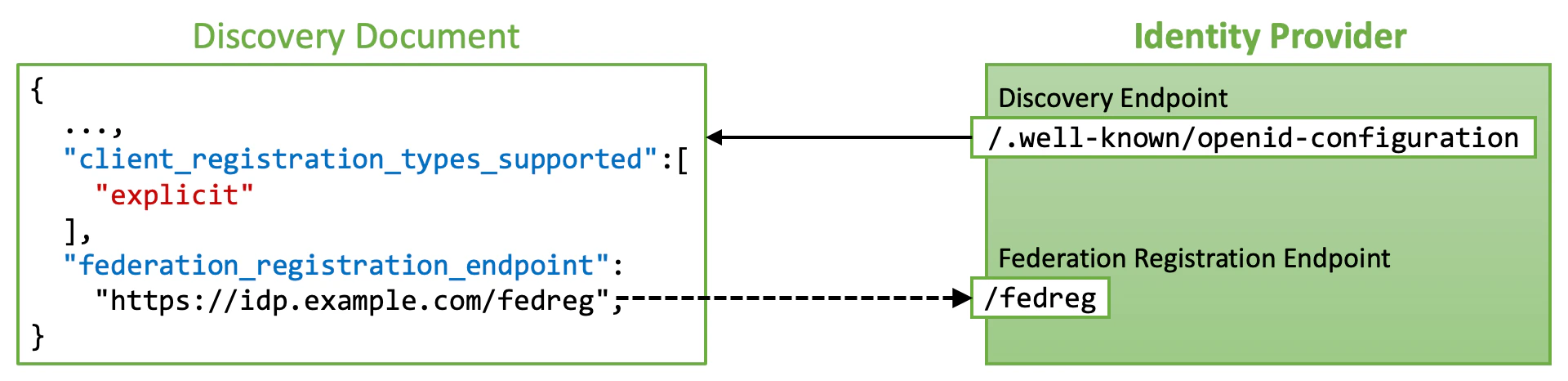

Explicit Client Registration

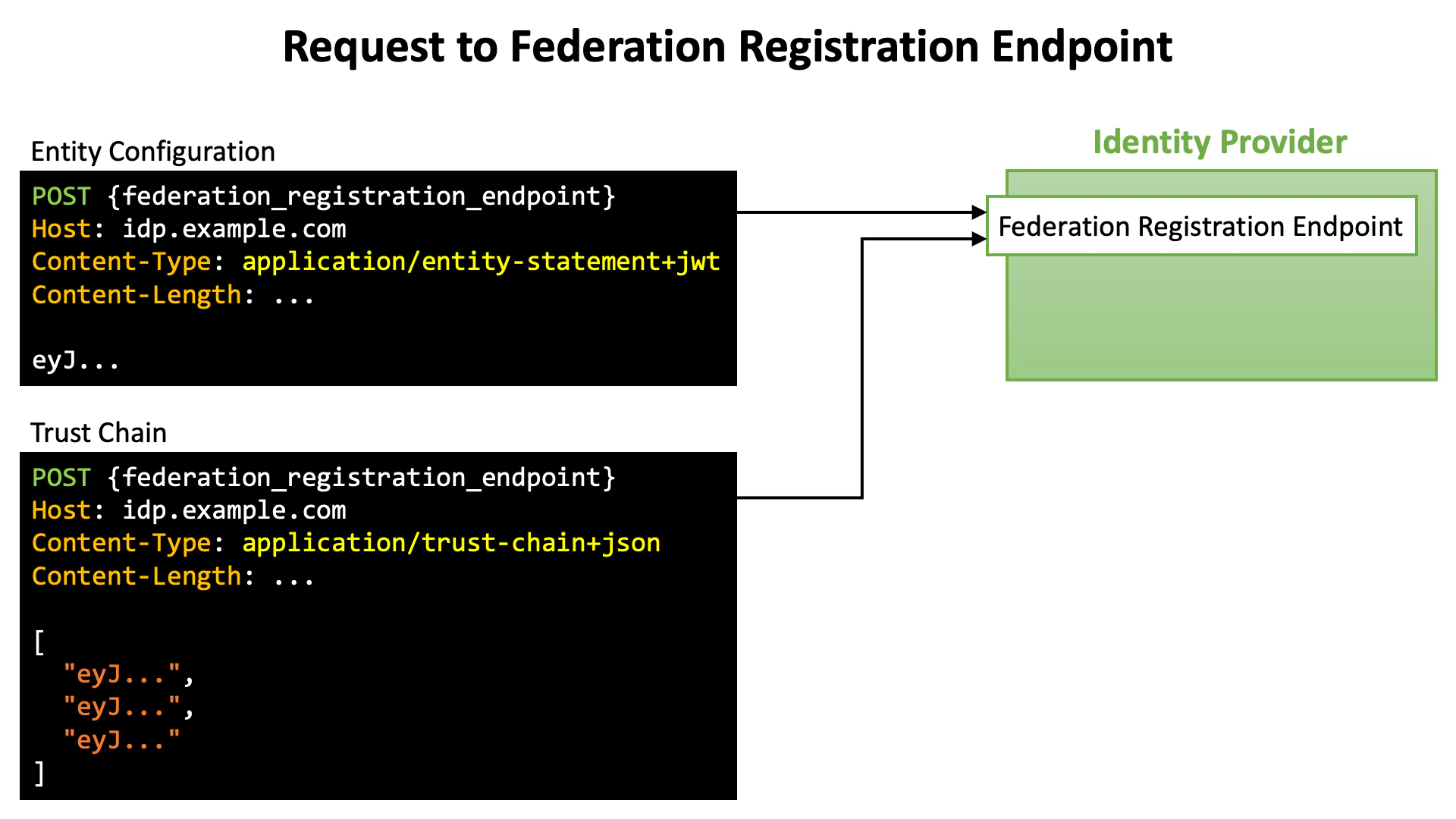

In addition to automatic client registration, the OpenID Federation specification defines a way to register a client explicitly. The mechanism is called “explicit client registration”. It is similar to dynamic client registration defined in OpenID Connect Dynamic Client Registration 1.0 and RFC 7591 OAuth 2.0 Dynamic Client Registration Protocol. An identity provider that supports explicit client registration has the federation registration endpoint that accepts explicit client registration requests. Input data to the federation registration endpoint is either of the following.
  1. Entity configuration. Its Content-Type is application/entity-statement+jwt.
  2. Trust chain, a JSON array listing entity statements. Its Content-Type is application/trust-chain+json.

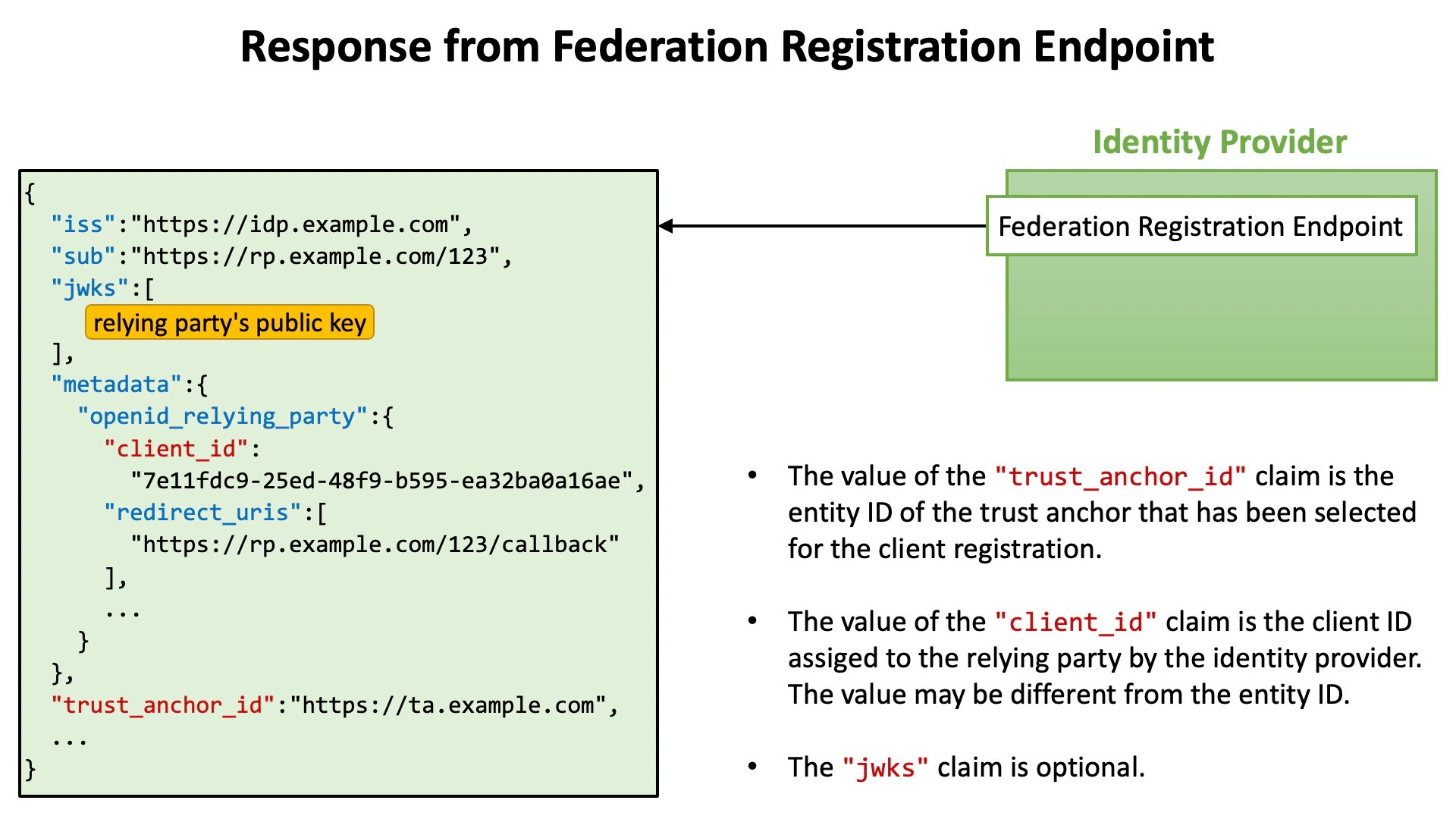

When client registration succeeds, the federation registration endpoint returns an entity statement as a response. A distinctive point of the response is the inclusion of the trust_anchor_id claim. The value of the claim denotes the entity ID of the trust anchor that has been selected for the client registration. The value of the client_id client metadata in the response is the client ID assigned to the relying party by the identity provider. The value may be different from the entity ID. The discovery document of an identity provider that supports explicit client registration includes explicit in the client_registration_types_supported server metadata and advertises the URL of the federation registration endpoint by the federation_registration_endpoint server metadata. Also, the client_registration_types client metadata of the client being explicitly registered must include explicit.

​
Automatic Client Update

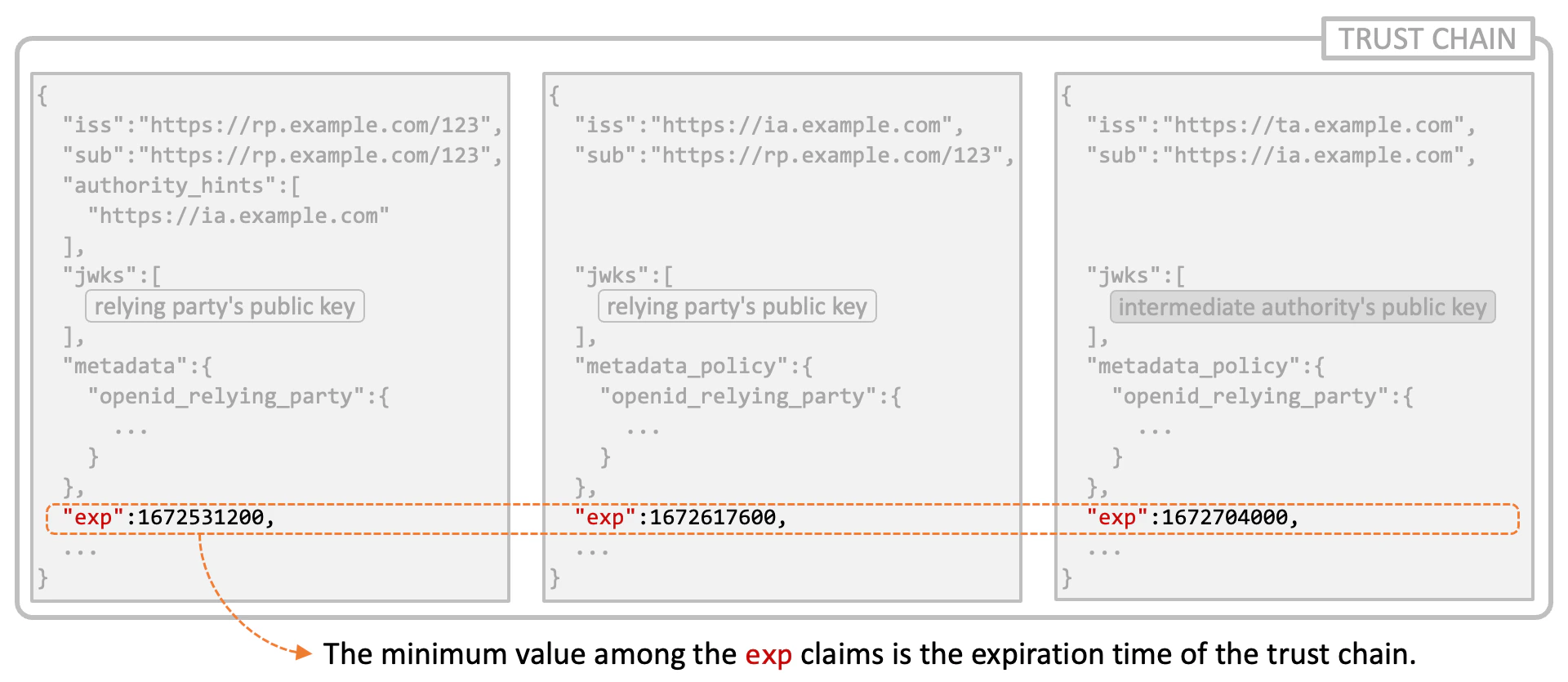

All entity statements in a trust chain include the exp claim (Expiration Time; RFC 7519 Section 4.1.4) as the OpenID Federation specification requires so. The minimum value among the exp claims is regarded as the expiration time of the trust chain. The OpenID Federation specification expects that identity providers treat the expiration time of the trust chain as the expiration time of the client which was registered based on the trust chain. When an identity provider detects that the trust chain of a client has expired, it tries to refresh the trust chain and update metadata of the client accordingly.
Authlete performs the automatic update only for clients whose client_registration_types client metadata includes automatic.

​
The trust_chain Request Parameter

An OAuth/OIDC request may contain the trust_chain request parameter. The identity provider may use the trust chain specified by the request parameter to update metadata of the client or register the client if it has not been registered yet.
Authlete does not reference the trust_chain request parameter for registration. Authlete references the request parameter only for update.

​
Authlete Implementation

​
Version

OpenID Federation 1.0 is supported by Authlete 2.3 and newer versions. Because the specification is still being updated actively, new features may be added and breaking changes may be made in the future. Authlete will follow the changes accordingly.

​
Feature Availability

To enable the feature of OpenID Federation 1.0, the following conditions must be satisfied. Otherwise, the Authlete Server would behave as if it didn’t know the specification at all.
  1. Authlete Server must be deployed with feature.oidc_federation.enabled=true.
  2. The federationEnabled flag of Service must be true. (cf. Service.setFederationEnabled(boolean))

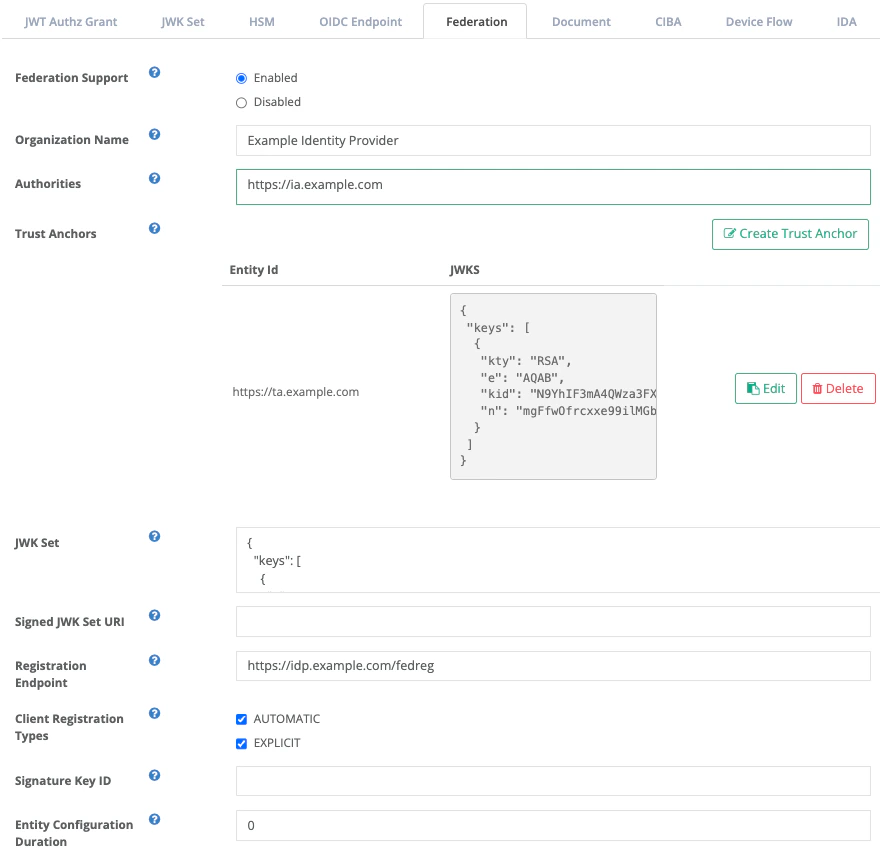

In addition, to make your identity provider function, the following settings must be configured properly.
  1. At least one authority (intermediate authority or trust anchor) must be registered. Otherwise, the service cannot generate its entity configuration. (cf. Service.setAuthorityHints(URI[]))
  2. At least one pair of trust anchor and its JWK Set must be registered. Otherwise, the service cannot trust any trust chain. (cf. Service.setTrustAnchors(TrustAnchor[]))
  3. At least one private key dedicated to OpenID Federation must be registered. Otherwise, the service cannot sign entity statements. (cf. Service.setFederationJwks(String))
  4. At least either of automatic client registration or explicit client registration must be supported. Otherwise, the service cannot register federation clients. (cf. Service.setSupportedClientRegistrationTypes(ClientRegistrationType[]))

​
Authlete API

Authlete Server provides the following APIs for OpenID Federation.

​

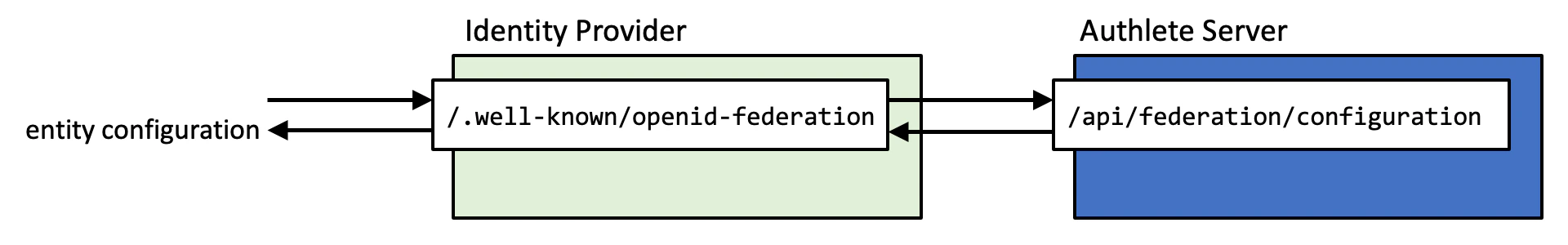

The /api/federation/configuration API

This API is used to implement the entity configuration endpoint (/.well-known/openid-federation). | Request | | HTTP Method | GET | | Response | | HTTP Status Code | 200 | | Content-Type | application/json | | Parameters | action | The next action that the implementation of the entity configuration endpoint (/.well-known/openid-federation) should take after getting a response from the Authlete API. In a successful case, the value of the action response parameter is “OK”. It means that the entity configuration endpoint should return a response with 200 OK, application/entity-statement+jwt, and the entity configuration prepared by the Authlete API. | | responseContent | The content that the implementation of the entity configuration endpoint (/.well-known/openid-federation) should use when it constructs a response. In a successful case, the value of the responseContent response parameter is the entity configuration of the identity provider in JWT format. | The authlete-java-common library includes FederationConfigurationRequest class and FederationConfigurationResponse class that can be mapped to the request and the response of the Authlete API. The FederationConfigurationRequest class is empty as of this writing, though. The class exists just for future extensibility. The authlete-java-jaxrs library contains utility classes for implementations of the entity configuration endpoint (FederationConfigurationRequestHandler and BaseFederationConfigurationEndpoint). With the utility classes, the entity configuration endpoint can be implemented like below (excerpt from FederationConfigurationEndpoint in java-oauth-server).
@Path("/.well-known/openid-federation")
public class FederationConfigurationEndpoint extends BaseFederationConfigurationEndpoint
{
    /**
     * Entity configuration endpoint.
     */
    @GET
    public Response get()
    {
        // Handle the request to the endpoint.
        return handle(AuthleteApiFactory.getDefaultApi());
    }
}

​

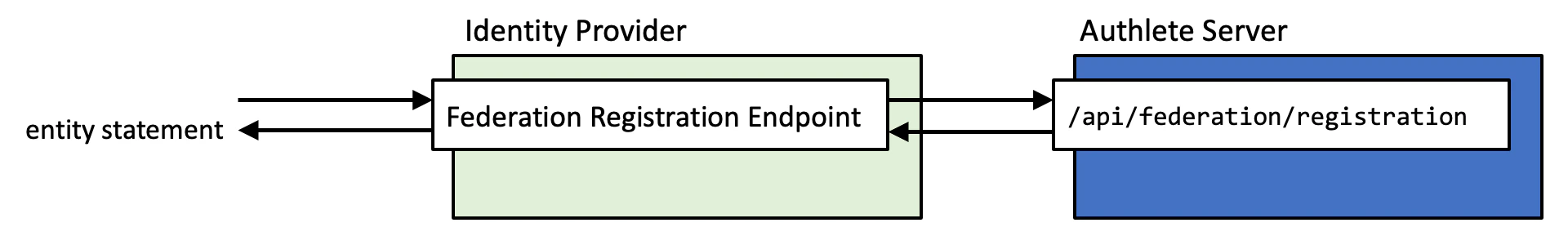

The /api/federation/registration API

This API is used to implement the federation registration endpoint. | Request | | HTTP Method | POST | | Content-Type | application/x-www-form-urlencoded application/json | | Parameters | entityConfiguration | The entity configuration in a federation registration request. | | trustChain | The trust chain in a federation registration request. | | Response | | HTTP Status Code | 200 | | Content-Type | application/json | | Parameters | action | The next action that the implementation of the federation registration endpoint should take after getting a response from the Authlete API. In a successful case, the value of the action response parameter is “OK”. It means that the federation registration endpoint should return a response with 200 OK, application/entity-statement+jwt, and the entity statement prepared by the Authlete API. | | responseContent | The content that the implementation of the federation registration endpoint should use when it constructs a response. In a successful case, the value of the responseContent response parameter is the entity statement of the newly registered client in JWT format. | | client | Information about the newly registered client in JSON object format. (cf. Client) | The authlete-java-common library includes FederationRegistrationRequest class and FederationRegistrationResponse class that can be mapped to the request and the response of the Authlete API. The authlete-java-jaxrs library contains utility classes for implementations of the federation registration endpoint (FederationRegistrationRequestHandler and BaseFederationRegistrationEndpoint). With the utility classes, the federation registration endpoint can be implemented like below (excerpt from FederationRegistrationEndpoint in java-oauth-server).
@Path("/api/federation/register")
public class FederationRegistrationEndpoint extends BaseFederationRegistrationEndpoint
{
    @POST
    @Consumes("application/entity-statement+jwt")
    public Response entityConfiguration(String jwt)
    {
        // Client registration by a relying party's entity configuration.
        return handle(
                AuthleteApiFactory.getDefaultApi(),
                request().setEntityConfiguration(jwt));
    }


    @POST
    @Consumes("application/trust-chain+json")
    public Response trustChain(String json)
    {
        // Client registration by a relying party's trust chain.
        return handle(
                AuthleteApiFactory.getDefaultApi(),
                request().setTrustChain(json));
    }


    private static FederationRegistrationRequest request()
    {
        return new FederationRegistrationRequest();
    }
}

​
Client Registration and Update

This section explains Authlete’s behavior on client registration and update in detail.

​
Automatic Client Registration

  1. When Authlete processes an OAuth/OIDC request, Authlete tries to identify a client at a relatively early phase. First, Authlete interprets the specified client identifier as an original numeric ID and searches the database for a client having the numeric ID.
  2. If a client having the numeric ID was not found, but if the “Client ID Alias” feature of the service is enabled, Authlete interprets the specified client identifier as an alias and searches the database for a client having the alias.
  3. If a client having the alias was not found, but if the “OpenID Federation” feature of the service is enabled, Authlete interprets the specified client identifier as an entity ID and searches the database for a client having the entity ID.
  4. If a client having the entity ID was not found, but if the service supports automatic client registration, Authlete tries to resolve a trust chain of the client.
  5. If the trust chain resolution succeeds, Authlete applies the combined metadata policy of the trust chain to the metadata of the client.
  6. Authlete checks whether the client metadata contains the client_registration_types client metadata and it includes automatic.
  7. Authlete validates the client metadata to ensure that the client can be registered to the service.
  8. Authlete performs request authentication for the OAuth/OIDC request.
  9. Finally, Authlete registers the client and continues to process the OAuth/OIDC request.
Authlete does not reference the trust_chain request parameter for registration. Authlete references the request parameter only for update. When the request parameter is included in an OAuth/OIDC request that triggers automatic registration, the trust chain specified by the request parameter is referenced for update right after registration.The reason for the limitation is that it is difficult, if not impossible, to write a coherent and orderly implementation that performs request authentication which depends on client metadata in the trust chain specified by the trust_chain request parameter.Also, when the request parameter is in a request object, implementation complexity jumps up. In the case, the key that should be used to verify the signature of the request object is embedded in the trust chain inside the request object. In that sense, it can be said that the request object is self-signed. In general, in a procedure that utilizes a self-signed object, the content of the self-signed object is referenced before the signature of the object is verified. Such procedures exist in the world, so the self-signed request object will maybe work. However, processes that must be done before signature verification, including the long and complex steps of trust chain resolution and verification, are too complex and dependent on unverified data too much.

​
Trust Chain Update

Case 1: when the trust_chain request parameter is given
  1. If the “OpenID Federation” feature of the service is not enabled, Authlete does not try to update trust chains.
  2. Authlete checks whether the service supports automatic client registration and whether the client’s client_registration_types metadata contains automatic. If these conditions are not satisfied, an error is returned.
  3. Authlete validates the trust chain specified by the trust_chain request parameter. Especially, the entity ID of the entity configuration in the trust chain must match the entity ID of the existing client.
  4. Authlete applies the combined metadata policy of the trust chain to the client metadata in the trust chain.
  5. Authlete checks whether the client metadata contains the client_registration_types client metadata and it includes automatic.
  6. Authlete validates the client metadata to ensure that the client can be updated with the metadata.
  7. Authlete updates metadata of the client.
  8. Authlete continues to process the OAuth/OIDC request.
When the trust_chain request parameter is given, trust chain update is always tried regardless of whether the current trust chain has expired or not. Even when trust chain update fails, the client is NOT deleted.
Case 2: when the trust_chain request parameter is not given
  1. If the “OpenID Federation” feature of the service is not enabled, Authlete does not try to update trust chains.
  2. Authlete checks whether the current trust chain of the client has expired. If the trust chain has not expired, Authlete does not try to update the trust chain.
  3. If the current trust chain has expired but the service does not support automatic client registration, the client is deleted and the OAuth/OIDC request fails.
  4. If the current trust chain has expired but automatic is not included in the client_registration_types client metadata, the client is deleted and the OAuth/OIDC request fails.
  5. Authlete builds a trust chain from the entity ID of the client from scratch.
  6. Authlete applies the combined metadata policy of the trust chain to the client metadata in the trust chain.
  7. Authlete checks whether the client metadata contains the client_registration_types client metadata and it includes automatic.
  8. Authlete validates the client metadata to ensure that the client can be updated with the metadata.
  9. Authlete updates metadata of the client.
  10. Authlete continues to process the OAuth/OIDC request.
When the trust_chain request parameter is not given, trust chain update is tried only when the current trust chain has expired. When trust chain update fails, the client is deleted.

​
Finally

OpenID Federation 1.0 is one of the most complex standard specifications related to OAuth and OpenID Connect and it is difficult to find commercial-quality implementations. Authlete is a rare example. If you are interested in trying OpenID Federation 1.0, please contact us.
