Preface

This article provides an overview of the fundamental aspects of configuring client authentication in Authlete.

​
How Client Authentication Works in Authlete

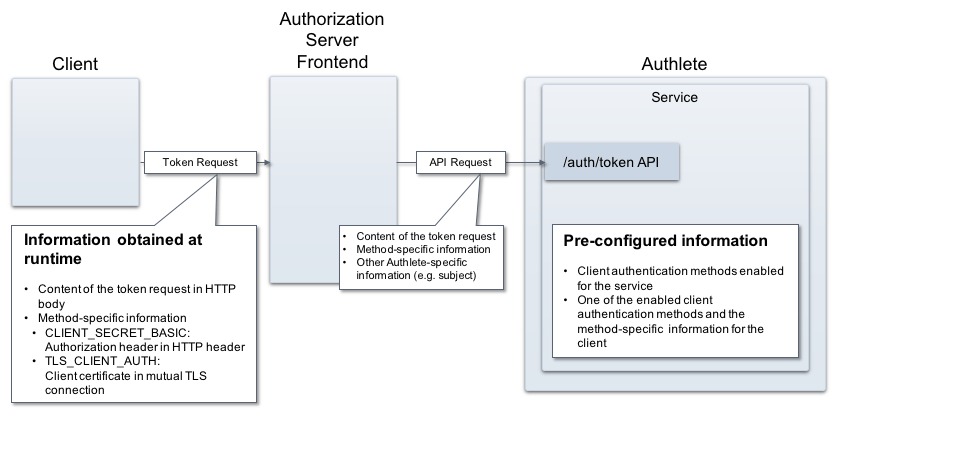

Authlete performs client authentication during token requests processing (/auth/token) by using both pre-configured information and information obtained at runtime.client-authentication-overview

​
Pre-configured Information

You will configure both an Authlete Service (an API instance acting as a backend of an authorization server) and a client in the service.
  • Authlete service
Specify which client authentication methods are enabled by the authorization server. You can enable multiple methods at the same time.
  • Client
Specify which one of the enabled methods is applicable for the client, registered in the service (i.e. establishing a connection with the authorization server). You may also configure information required for the authentication method (e.g. the client’s public key, subject name of the client’s certificate).

​
Information obtained at runtime

On receiving a token request from a client, an authorization server passes the content of the request to Authlete’s /auth/token API that processes it. Authlete parses the content, detects the identity of the client, determines the pre-specified authentication method, and fulfills client authentication. Some client authentication methods require additional information such as a value of Authorization header in HTTP request from the client to the authorization server, the client’s certificate used in mutual TLS connection between the parties. In such cases, the authorization server extracts those information from the HTTP request or the mutual TLS, and sends it to Authlete, along with the content of the token request.

​
Configuration example

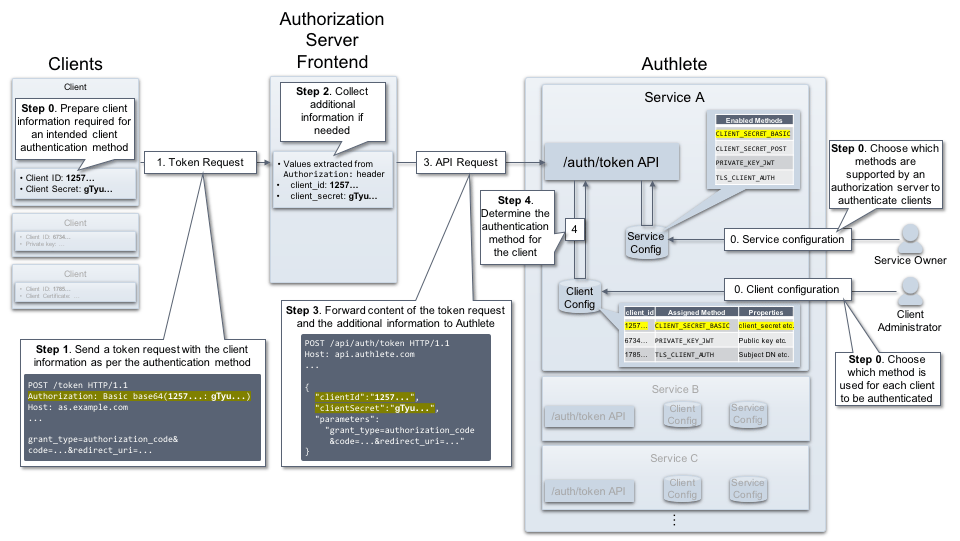

This section shows an example to use CLIENT_SECRET_BASIC method to authenticate a client (ID: 1257…) and fulfill a token request.client-authentication-client-secret-basic

​
Service Settings

The following settings are done in the pre-configuration. To enable the CLIENT_SECRET_BASIC method in your service:
  1. Log in to the Authlete Management Console
  2. Click on your Organization name and choose your Service.
  3. Navigate to Service Settings > Endpoints > Token
  4. Under the Supported Client Authentication Methods section, select the CLIENT_SECRET_BASIC checkbox.
  5. Click Save Changes to apply the updates.
client-authentication_1

​
Client Settings

To enable the CLIENT_SECRET_BASIC method for your client:
  1. Navigate to Client Settings > Endpoints > Token > General
  2. Under the Client Authentication Method section, open the dropdown menu and select CLIENT_SECRET_BASIC
  3. Click Save Changes to apply the updates.
client-authentication_2

​
Client ID and Client Secret in Client Basic Settings

CLIENT_SECRET_BASIC requires only “client ID” and “client secret” to authenticate the client. In Authlete, these values are automatically generated (“1257…” and “gTyu…” respectively in this example). The client administrator sets the auto-generated values to the client. To view your Client ID and Client Secret in the Authlete Management Console:
  1. Log in to the Authlete Management Console
  2. Click on your Organization name and choose your Service.
  3. Navigate to Client Settings > Basic Settings > General

​
Client Request Flow from Start to Finish

Here are flows from a token request by the client to fulfillment by Authlete. Step 1 The client prepares a token request. The request will be sent to the authorization server with information needed for client authentication. In this case, the client sets its client ID (1257…) and secret (gTyu…) to Authorization header of the HTTP request.
Step 2 The authorization server obtains the actual content of the token request (“grant_type=authorization_code&…” in this example) from body part of the HTTP request. The client’s ID and secret are also extracted from the Authorization in the HTTP header part at the same time. Step 3 The authorization server makes a request to Authlete’s /auth/token API. The request contains the values that have been obtained in the step 2; the content of the token request and the client’s ID and secret, as “parameters”, “clientId”, “clientSecret” respectively.
Step 4 By using the client’s ID in the API request, Authlete determines the identity of the client that is the source of the token request. Authlete eventually recognizes that CLIENT_SECRET_BASIC is the method to authenticate the client, checks the value of the client’s secret, and decides if the authentication is successful or not.

​
Method Specific Configuration Tips

Both client information to be pre-configured in an Authlete service, and tasks to be done by an authorization server on receiving an token request, are different for each client authentication method. This table describes configuration tips for some of the methods supported by Authlete.
